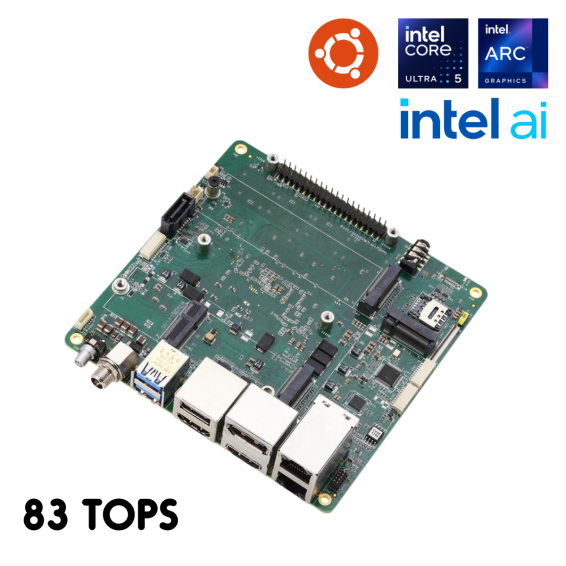

UP Xtreme ARL AI Dev Kit [83 TOPs with expandability for additional AI acceleration module]

$979.00

Stock Available Now

SKU

UPX-ARL225H-A10-16256-AIKT1

Optional

Add to Cart

M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
$29.99

Qty:
Add to Cart

Hailo-8™ M.2 2280 B+M key
$199.00

Qty:
Add to Cart

5G Module (North America)
Special Price $239.00 Regular Price $339.00

Qty:
Add to Cart

MIPICSI Camera Converter Kit
$49.00

Qty:
Add to Cart

RPI MIPICSI Camera Converter Kit
$39.00

Qty:
Add to Cart

UP HDMI IN Carrier Board for UPS Pro 7000, UPS i12
Special Price $35.00 Regular Price $49.00

Qty:
Add to Cart

M.2 3042 LTE module kit (Global)
$69.99

Qty:
Add to Cart

M.2 2230 Wi-Fi 6E Kit (Intel® Wi-Fi 6E AX210)
$34.90

Qty:
Add to Cart

Hailo-8L™ M.2 2230 A+E key
$99.00

Qty:

Check the webinar for more understanding about how this kit can help accelerate Your AI Project. LinK

The UP Xtreme ARL Dev Kit is built for advanced AI workloads with its Intel® Core™ Ultra 5 Processor 225H delivering 14 cores of computing power.
- Intel® Core™ Ultra 5 processor 225H
- Intel® Arc™ 130T GPU and integrated NPU: 83 TOPs
- Expandability for mipi via UP RPI MIPI camera converter Kit
- Expandability for multiple AI module options via M.2 2280 or 2230 slot
- Ubuntu Pro 24.04 LTS* preinstalled includes UP AI Sw Dev Suite

* For evaluation purpose, no guarantee from Canonical. License is a must other than evaluation unit. Please contact shop@up-board.org for more information.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP Xtreme ARL AI Dev Kit [83 TOPs with expandability for additional AI acceleration module]
SKU	UPX-ARL225H-A10-16256-AIKT1

General
Processor	Intel® Core™ Ultra 5 processor 225H
Mainboard	UPX ARL
Graphics	Intel® Arc™ 130T GPU and NPU
VPU	optional (via M.2 2280)
Memory	16GB
eMMC / Storage	256GB M.2 PCIe Gen 4 x4 SSD
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Pre-Installed OS	Ubuntu 24.04 LTS
Compatible OS	Win 11 LTSC/ 10 LTSC Linux: Ubuntu 24.04 LTS, Yocto 5+
Dimension	120.35 x 122.5 mm

Display
HDMI	2x HDMI 2.1
Display Port	1 x DP 1.2 1 x DP 1.4a via USB Type C

I/O
USB	2x USB 2.0 via 10-pin wafer 1x USB 2.0 Type A 2x USB 3.2 Gen 2 Type A 1x USB3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
UART	1x HSUART via 10pin wafer
Serial Port	2x RS-232/422/485 10-pin header
Expansion Slot	2x M.2 2280 M key (PCIe Gen4x4) 1x M.2 2230 E key (PCIe Gen 3x1/USB 2.0) 1x M.2 3052 B Key (PCIe Gen 3x1/USB3.2 Gen 2x1) with Nano SIM slot (USB 3.0) 1x SATA 6Gb/S
GPIO	Yes
MIPI-CSI	1x MIPI-CSI via 61-Pin FPC Connector

Connectivity
Ethernet	1x GbE (Intel® i219) 1x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 2230 )

Power
Power Requirement	9~36V DC-in
Power Supply Type	AT/ATX mode

Environmental & Certification
Cooling	Active heatsink
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	1000g
Gross Weight	1500g
HS Code	8473302000
Country of Origin	Taiwan

Accessories
Accessories	1x UP HD Camera 1x 19V/6.32A Power Adapter

Downloads

	UP AI SW Dev Suite Tutorial	N/A	N/A	Download
	UPX ARL AI Dev Kit Datasheet	N/A	N/A	Download
