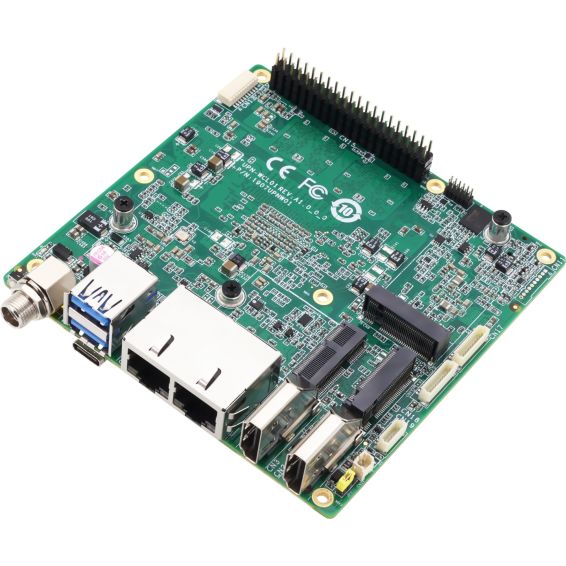

UP Nexus WCL. Intel® Core™ 5 processor 320. 16GB RAM. 128GB UFS
$1,099.00
Backorder
SKU
UPN-WCL01-A10-320-16128
Optional
-
-
UPS 7100/UPX i11/UPS Pro/UPS 6000/UPS Pro 7000 Power Supply 12V@8A <W/O Power cord>Special Price $19.99 Regular Price $45.00
-
-
-
Stock is limited. Price shown applies to 1–9 units only.
Bulk pricing (>9 units) is quoted separately and may be higher due to market conditions.
UP Nexus WCL | Advanced Edge AI Developer Board with Intel® Core™ Series 3
- Intel® Core™ processors 320
- 16GB Onboard LPDDR5 Memory
- 128GB Onboard UFS Storage
- 2x 2.5GbE(Intel® Ethernet Controller I226-IT)
- 2x USB 3.2(Type A x 2)
- 1x USB 3.2 Gen 2x2 (Type-C)
- 1x 40-pin GPIO
- 2x HDMI 2.1 (TMDS)/ DP 1.4a via USB Type-C
- 2x RS-232/422/485 via 10-pin Header
- M.2 2230 E-Key, M.2 2280 M-Key, M.2 2242 M-Key
- TPM 2.0
- 12V-24V DC-in
| Name | UP Nexus WCL. Intel® Core™ 5 processor 320. 16GB RAM. 128GB UFS |
|---|---|
| SKU | UPN-WCL01-A10-320-16128 |
| Processor | Intel® Core™ 5 processor 320 |
|---|---|
| Graphics | Intel® Graphics |
| VPU | Optional (via M.2 2280) |
| Memory | 16GB LPDDR5 |
| eMMC / Storage | 128GB UFS |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | TPM 2.0 |
| Compatible OS |
Windows 11 Ubuntu 24.04 |
| Dimension | 4" x 4" (101.6mm × 101.6mm) |
| HDMI | 2x HDMI 2.1 (TMDS) |
|---|---|
| Display Port | 1x DP 1.4a via USB Type C |
| MIPI DSI/ eDP | N/A |
| USB |
2 x USB 2.0 (via 10 pin wafer) 2 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 2x2 Type C |
|---|---|
| Audio | 1x audio jack (mic in, line out) |
| UART | 1x UART (via 10 pin wafer) |
| Serial Port | 2 x RS-232/422/485 (via 10 pin header) |
| Expansion Slot |
1 x M.2 2280 M Key (PCIe Gen 4 [x2]) 1 x M.2 2230 E Key (CNVI, PCIe Gen 4 [x1], USB 2.0, UART) 1 x M.2 2242 M Key (PCIe Gen 4 [x1]) |
| 40-pin GPIO header | yes |
| Ethernet | 2 x 2.5GbE (Intel® i226IT) |
|---|---|
| Wi-Fi | Optional (via M.2 2230) |
| Bluetooth | Optional (via M.2 2230) |
| LTE / 4G / 5G | NA |
| Power Requirement | 12V-24V DC in |
|---|---|
| Power Supply Type | AT/ATX mode |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | -4°F ~ 140°F (-20°C ~ 60°C) / 0.5 airflow with active cooler |
| Storage temperature | -40°F ～ 176°F (-40°C ～ 80°C) |
| MTBF (Hours) | 422,053 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
| Net Weight | 200g |
|---|---|
| Gross Weight | 350g |
| Package dimension (L x W x H) | 157×147×68mm |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
| Accessories |
1x RTC Battery 1x active heatsink |
|---|
