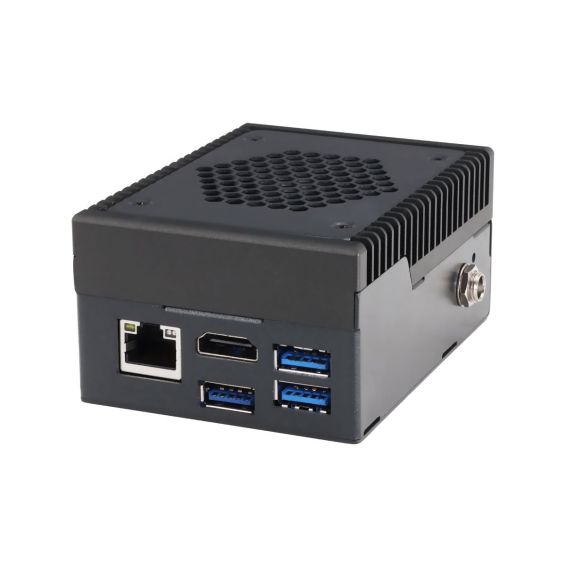

main product photo

UP WCL Edge Series

As low as $679.00
 
Only %1 left
SKU
UP-EDGE-WCL-Series
Optional
  1. UP7000/UP 4000/UPS V2/UPC Plus power supply 12V@5A<W/O power cord>
    $12.99
Add to Wish List Add to Compare

Stock is limited and pricing is subject to confirmation.

UP WCL Edge | Compact Edge AI System Powered by Intel® Core™ Series 3

  • Intel® Core™ processors (Series 3) 304
  • 8GB Onboard LPDDR5 Memory
  • Onboard UFS Storage, up to 128GB
  • 1x 2.5GbE
  • 1x HDMI 2.1 (TMDS)
  • 3x USB 3.2 (Type-A)
  • 12V DC-in, 5A
  • M.2 2230 E-Key
  • 1x 10-pin GPIO
UP-WCL01-SYS-A10-304-0864
Product Details
Name UP WCL Edge.Intel Core 3 processor 304.8GB RAM.64GB UFS
SKU UP-WCL01-SYS-A10-304-0864
General
Mainboard UP WCL
Processor Intel® Core™ 3 processor 304
Graphics Intel® Graphics
Memory 8GB LPDDR5
eMMC / Storage 64GB UFS
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM TPM 2.0 support (fTPM)
Compatible OS Windows® 11 LTSC
Ubuntu 24.04 LTS
Yocto 6.0
Dimension 3.74" × 2.76" × 1.67" (95mm x 70mm x 42.3mm)
Mounting DIN Rail, VESA
Display
HDMI 1x HDMI 2.1 (TMDS)
I/O
USB 3 x USB 3.2 Gen 2 Type-A
Expansion Slot 1x M.2 2230 E-Key x 1 (CNVI2/ CNVI3, PCIe Gen 4 [x1], USB 2.0)
GPIO BIOS-selectable: 3.3V I2C x 2/PWM x 2/SPI x 2 or GPIO x 8
Connectivity
Ethernet 1x 2.5GbE RJ-45
Power
Power Requirement 12V DC-in, 5A
Power Supply Type AT/ATX mode
Power Consumption (Typical) 30 ~ 36w
Environmental & Certification
Cooling Active heatsink
Operating Temperature 23°F ~ 140°F (-20°C ~ 60°C) with 0.7m/s air flow
Storage temperature -4°F ~ 158°F (-20°C ~ 70°C)
MTBF (Hours) 685,218 hrs
Certification CE/FCC Class A, RoHS Compliant, REACH
Package
Net Weight 280g
Gross Weight 430g
HS Code 8471500000
Country of Origin Taiwan
Accessories
Accessories 1x RTC battery 1x Active Heatsink
UP-WCL01-SYS-A10-304-08128
Product Details
Name UP WCL Edge.Intel Core 3 processor 304.8GB RAM.128GB UFS
SKU UP-WCL01-SYS-A10-304-08128
General
Mainboard UP WCL
Processor Intel® Core™ 3 processor 304
Graphics Intel® Graphics
Memory 8GB LPDDR5
eMMC / Storage 128GB UFS
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM TPM 2.0 support (fTPM)
Compatible OS Windows® 11 LTSC
Ubuntu 24.04 LTS
Yocto 6.0
Dimension 3.74" × 2.76" × 1.67" (95mm x 70mm x 42.3mm)
Mounting DIN Rail, VESA
Display
HDMI 1x HDMI 2.1 (TMDS)
I/O
USB 3 x USB 3.2 Gen 2 Type-A
Expansion Slot 1x M.2 2230 E-Key x 1 (CNVI2/ CNVI3, PCIe Gen 4 [x1], USB 2.0)
GPIO BIOS-selectable: 3.3V I2C x 2/PWM x 2/SPI x 2 or GPIO x 8
Connectivity
Ethernet 1x 2.5GbE RJ-45
Power
Power Requirement 12V DC-in, 5A
Power Supply Type AT/ATX mode
Power Consumption (Typical) 30 ~ 36w
Environmental & Certification
Cooling Active heatsink
Operating Temperature 23°F ~ 140°F (-20°C ~ 60°C) with 0.7m/s air flow
Storage temperature -4°F ~ 158°F (-20°C ~ 70°C)
MTBF (Hours) 685,218 hrs
Certification CE/FCC Class A, RoHS Compliant, REACH
Package
Net Weight 280g
Gross Weight 430g
HS Code 8471500000
Country of Origin Taiwan
Accessories
Accessories 1x RTC battery 1x Active Heatsink
