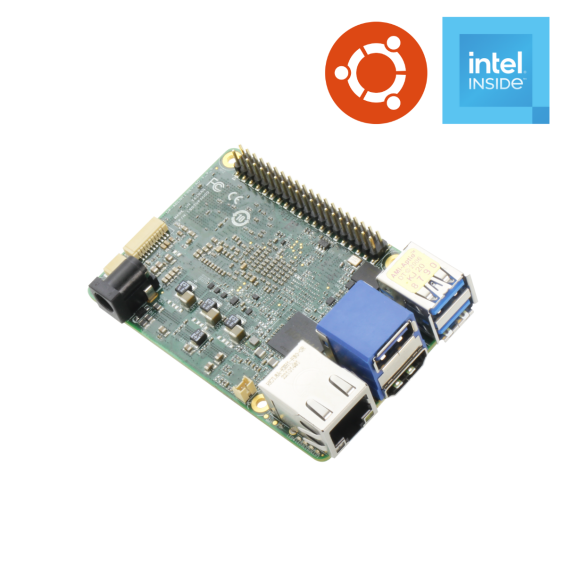

UP TWL AI Dev Kit [Entry]

$279.00

Stock Available Now

SKU

UP-TWLN150-A12-0864-AIKT1

Optional

Add to Cart

UP CAN Bus Carrier Board
$59.00

Qty:
Add to Cart

Intel® RealSense™ Depth Camera D435i
$339.00

Qty:

Check the webinar for more understanding about how this kit can help accelerate Your AI Project. LinK

A cost-effective AI development solution for flexible innovation
- Intel® Processor N150 (formerly Twin Lake)
- 24 Execution Units (EU) available for entry level AI workloads
- TPM 2.0 on board
- card-szied
- Ubuntu 24.04 Pro LTS* preinstalled includes UP AI SW Dev Suite

* For evaluation purpose, no guarantee from Canonical. License is a must other than evaluation unit. Please contact shop@up-board.org for more information.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP TWL AI Dev Kit [Entry]
SKU	UP-TWLN150-A12-0864-AIKT1

General
Processor	Intel® Processor N150
Mainboard	UP TWL
Graphics	Intel® UHD Graphics
Memory	8GB
eMMC / Storage	64 GB
FPGA	Intel® FPGA Altera Max V
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Pre-Installed OS	Ubuntu 24.04 LTS
Compatible OS	Windows®: 10 Enterprise LTSC 2021, 11 IoT Enterprise LTSC 2024 Linux: Ubuntu 22.04 LTS/Kernel 5.15, Yocto 4.0
Dimension	3.37”x 2.22”( 85.6mm x 56.5mm)

Display
HDMI	1 (HDMI 1.4b)

I/O
USB	2 x USB 2.0 via 10-pin wafer 3 x USB 3.2 Gen 2 Type-A
UART	1x UART via 10pin wafer
GPIO	40-pin GPIO header

Connectivity
Ethernet	1x GbE (Realtek RTL8111H CG)

Power
Power Requirement	12V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	30W

Environmental & Certification
Cooling	Active heatsink
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	650 gm
Gross Weight	800 gm
HS Code	8473302000
Country of Origin	Taiwan

Accessories
Accessories	1x UP HD Camera 1x 12V/5A Power Adapter

Downloads

	UP AI SW Dev Suite Tutorial	N/A	N/A	Download
	UP TWL AI Dev Kit Datasheet	N/A	N/A	Download
