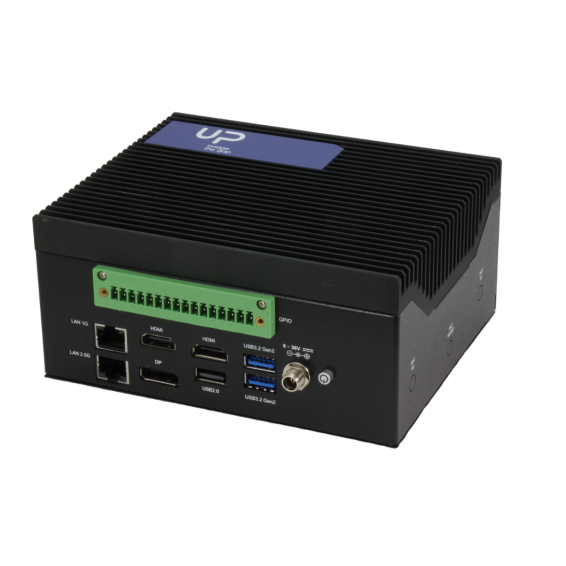

UP Xtreme i14 Edge Computing Kit

$1,299.00

Backorder

SKU

UPX-EDGE-MTL155H-A10-32256-U01

Optional

Add to Cart

M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
$29.99

Qty:
Add to Cart

Hailo-8™ M.2 2280 B+M key
$199.00

Qty:
Add to Cart

M.2 SSD 2280 256GB,PCIe Gen4 x 4 (OM8SEP4256Q-A0), M Key,3D TLC, Kingston
$49.99

Qty:
Add to Cart

5G Module (North America)
Special Price $239.00 Regular Price $339.00

Qty:
Add to Cart

UP Xtreme i12/UP Element i12 Edge Power Supply 19V@6.32A <W/O Power Cord>
$49.00

Qty:
Add to Cart

M.2 3042 LTE module kit (Global)
$69.99

Qty:

If you need windows preinstallation or pure system, please contact shop@up-board.org.

UP Xtreme i14 Edge Computing Kit with Ubuntu 24.04 Preinstalled (Ubuntu Pro validated) to provide cutting-edge hardware paired with the secure, long-term support of Ubuntu Pro.
- Powered by Intel Intel® Core™ Ultra 7 processor 155H
- Intel® Arc™ Graphics engine for High-End Graphics
- 32GB dual-channel LPDDR5
- 9-36V DC-in
- TPM 2.0
- 2x M.2 2280 M-keys for expandability
- 2x HDMI 2.1, 1x DP 2.1, and 1x DP 1.4 via USB Type-C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP Xtreme i14 Edge Computing Kit
SKU	UPX-EDGE-MTL155H-A10-32256-U01

General
Mainboard	UP Xtreme i14
Processor	Intel® Core™ Ultra 7 processor 155H
Graphics	Intel® Arc™ graphics
VPU	optional (via M.2 2280)
Memory	32GB
eMMC / Storage	256GB M.2 PCIe Gen 4 x4 SSD
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Windows 10/11 (64bit) Ubuntu 22.04/Kernel 6.5 up
Pre-Installed OS	Ubuntu 24.04 with Ubuntu Pro License
Dimension	152 x 123.8 x 71.5 mm

Display
HDMI	2x HDMI 2.1
Display Port	1x DP 2.1 1x DP 1.4 via USB Type-C

I/O
USB	1x USB 2.0 Type A 2x USB 3.2 Gen 2 Type A 1x USB3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
Serial Port	2x RS-232/422/485
Expansion Slot	2x M.2 2280 M key (PCIe Gen4x4): 1 slot is used by 256GB NVMe SSD 1x M.2 2230 E key (PCIe Gen 3x1/USB 2.0) 1x M.2 3052 B Key (PCIe Gen 3x1/USB3.2 Gen 2x1) with Nano SIM slot (USB 3.0) 1x SATA 6Gb/S
GPIO	Yes

Connectivity
Ethernet	1x GbE (Intel® i219) 1x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 2230 )

Power
Power Requirement	9~36V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	67-80W

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	1,014,016 hrs
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	1.34 kg
Gross Weight	1.76kg
Package dimension (L x W x H)	278x269x149mm
HS Code	8473302000
Country of Origin	Taiwan

Longevity
Longevity	2034

Accessories
Accessories	1x RTC battery

Downloads

UP Xtreme i14 Edge Computing Kit Datasheet

pdf

390.3 KB

Download
