NV8600-Nano AI developer Kit [67TOPS]
$649.00
Stock Available Now
SKU
NV8600-KIT-JP620N-A1-1010
Optional
NV8600-Nano AI Developer Kit [NVIDIA® Jetson Orin Nano™]: Industrial certified and Mass Production Ready For Project Use, Check More Info Tab for compaison between NV8600-Nano AI Developer Kit and Nvidia JetsonNano Developer Kit.
- 8GB
- Super mode support
- 2 x Rpi MIPI Connector
- 1 x M.2 2230 E-Key, 1 x M.2 2280 M-Key, 1 x M.2 3052 B-Key
- 40-pin Header compliant with NVIDIA Jetson Orin Nano Developer Kit
- Preinstalled NVIDIA® Jetson™ Software

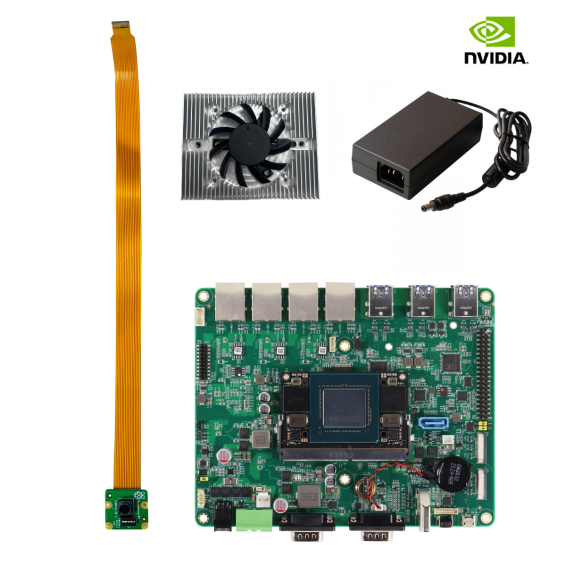

What's included in this Kits?
1 x NV8600-Nano AI developer Kit (based on NVIDIA® Jetson Orin Nano™)
1 x Fan Kit
1 x 60W Power adapter
1 x Raspberry Pi Camera Module 2
| Name | NV8600-Nano AI developer Kit [67TOPS] |
|---|---|
| SKU | NV8600-KIT-JP620N-A1-1010 |
| Processor | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|---|---|
| VPU | NVIDIA® Jetson Orin Nano™: 67 TOPS (Super Mode Supported) |
| Memory | 8GB |
| eMMC / Storage | 256GB M.2 2280 M-key NVME SSD |
| RTC | No |
| Wake-on-LAN (WoL) | No |
| Watchdog Timer | No |
| PXE | No |
| Compatible OS | Linux (NVIDIA Jetpack™ 6.0 and above) |
| Dimension | 6.53'' x 5.24'' (166mm x 133mm) |
| HDMI | 1 (HDMI 1.4a) |
|---|
| USB | 6 x USB 3.2 Gen 2 Type A |
|---|---|
| UART | 1 x UART for OOB |
| Serial Port |
1 x RS-232(RX/TX/GND)/422/485 1 x Pin Header for RS/232/422/485 (jumper select) |
| Expansion Slot | 1 x M.2 2230 E-Key 1 x M.2 2242/3042/3052 B-Key(SIM onboard) 1 x M.2 2280 M-Key |
| 40-pin GPIO header | 40-pin Header (compliant with NVIDIA Jetson Orin Nano Developer Kit) |
| MIPI-CSI | 2 x MIPI Connector |
| Others |
1 x CANBus 1x Micro USB for Image Flash |
| Ethernet | 4 x GbE(optional: power moudle for PoE(25.6W each port)) |
|---|
| Power Requirement | 12V ~ 24V DC in with 2-pin Terminal Block |
|---|
| Operating Temperature | -13°F ~ 158°F (-25°C ~ 70°C) w/ Fan Kit, according to IEC60068-2 with 0.5m/s AirFlow |
|---|---|
| Storage temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Certification | CE/FCC Class A |
| Net Weight | 190 g |
|---|---|
| Gross Weight | 360 g |
| Country of Origin | Taiwan |
| Accessories |
1 x NV8600-Nano AI developer Kit 1 x Fan Kit 1 x 60W Power adapter 1 x Raspberry Pi Camera Module 2 |
|---|
