RPI MIPICSI Camera Converter Kit

$39.00

Schedule TBD

SKU

UPCR-CAMB-A10-0002

Enable MIPI CSI capability via the expansion board and FPC cable

Want to start MIPI development with supported MIPI cameras from Raspberry Pi and even go for more professional cameras via MIPI or GMSL?

Purchase through "Optional" section !

UP Squared Pro 7000/TWL board/UP Squared i12/UP Xtreme i12/UP Xtreme i14/UP Squared Pro 710H
Supported Camera (To be purchased separately)

Product Details
Name	RPI MIPICSI Camera Converter Kit
SKU	UPCR-CAMB-A10-0002

General
SKU/ Part Number	UPCR-CAMB-A10-0002
Compatible UP product	UP Squared Pro 7000 board/UP Squared i12/UP Xtreme i12/UP Xtreme i14/UP Squared Pro 710H

I/O
Others	4-Lane + Clock from Camera Module Connector x 2 MIPI-CSI Out: 61-pin FPC Connector x 1

Power
Power Requirement	5V/2A Power-In from Wafer

Environmental & Certification
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)

Accessories

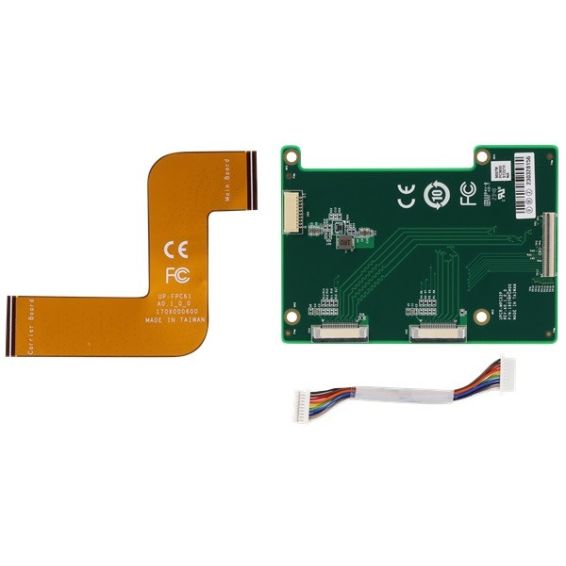

Accessories	1x MIPI Converter board 1x FPC Cable 1x Power Cable 1x Screws/Stud Pack

	Mipi Camera Tool Kit Tutorial	N/A	N/A	Download
	RPI MIPI Camera Kit Datasheet	pdf	409.2 KB	Download
