UP Xtreme i12 Series

As low as $399.00
 
Only %1 left
SKU
UPX-ADLP-series
Optional
  1. UP Xtreme i12/UP Element i12 Edge Power Supply 19V@6.32A <W/O Power Cord>
    $49.00
  2. M.2 SSD 2280 256GB,PCIe Gen3 x 4, M Key,3D TLC, Kingston
    $49.99
  3. Hailo-8™ M.2 2280 B+M key
    $199.00
  4. M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
    $29.99
  5. M.2 3042 LTE module kit (Global)
    $69.99
  6. 5G Module (North America)
    Special Price $239.00 Regular Price $339.00
  7. UP CAN Bus Carrier Board
    $59.00
  8. UP 5" LCD Kit
    $129.00
Add to Wish List Add to Compare
 Support Hailo-8™ AI Accelerator / Support up to 26 TOPs / Support Hailo-8™ Software Development Kit. Check Tutorial for more information.

High performance developer board
12th Gen Intel® Core™ i7/i5/i3 (formerly Alder Lake-P) and Intel® Celeron® processor SoCs
Intel® Iris® Xe Graphics
Up to 16GB dual channel LPDDR5 RAM
Powered by TPM 2.0
12-36V DC input

2.5GbE supports Time-Sensitive Networking (TSN)
Supports Intel vPro® technology at 1GbE with i5 and i7 CPU SKUs

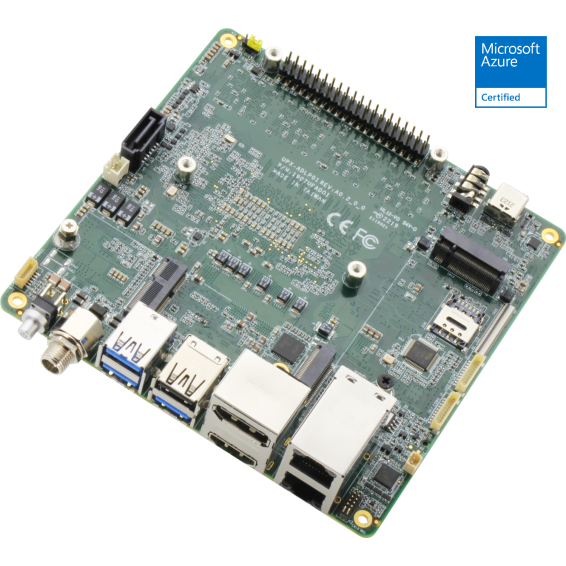

main product photo
UPX-ADLPCR-A10-0800
Product Details
Name UP Xtreme i12. Celeron® 7305E. 8GB RAM
SKU UPX-ADLPCR-A10-0800
General
Processor Intel® Celeron® 7305E
Graphics Intel® Iris® Xe Graphics
VPU Optional (via M.2 2280)
Memory 8GB
eMMC / Storage via SATA or M.2 2280 NVMe*
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Windows* 10 Enterprise 2021 LTSC
Ubuntu 22.04
Yokuto (undecided)
Dimension 120.35×122.5mm
Display
HDMI 1 x HDMI 2.0b
Display Port 1 x DP 1.4a
1 x DP 1.4b via USB Type-C
MIPI DSI/ eDP 1x eDP1.4b
I/O
USB 2x USB 2.0 (via 10 pin wafer)
1x USB 2.0 Type A
3x USB 3.2 Gen 2 Type A
1x USB4.0 Type C
Audio 1x audio jack (mic in, line out)
UART 1x HSUART (via 10-pin wafer)
Serial Port 2x RS-232/422/485 10 pin headers
Expansion Slot 2x M.2 2280M Keys (PCIe 4.0 x4),
1x M.2 2230 E Key (PCIe/USB)
1x M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
40-pin GPIO header yes
Connectivity
Ethernet 1x GbE (Intel® i219)
1x 2.5GbE (Intel® i226IT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3052)
Power
Power Requirement 12-36V DC input
Power Supply Type AT/ATX mode
Power Consumption (Typical) Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (typical)
Environmental & Certification
Cooling Active heatsink
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 362,068
Certification CE/FCC Class A, RoHS Compliant, REACH
Package
Net Weight 389g
Gross Weight 604g
Package dimension (L x W x H) 229×181×97mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2037
Accessories
Accessories 1x RTC Battery
1x Active heatsink
UPX-ADLPI3-A10-0800
Product Details
Name UP Xtreme i12. Core i3-1220PE. 8GB RAM
SKU UPX-ADLPI3-A10-0800
General
Processor Intel® Core™ i3-1220PE
Graphics Intel® Iris® Xe Graphics
VPU Optional (via M.2 2280)
Memory 8GB
eMMC / Storage via SATA or M.2 2280 NVMe*
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Windows* 10 Enterprise 2021 LTSC
Ubuntu 22.04
Yokuto (undecided)
Dimension 120.35×122.5mm
Display
HDMI 1 x HDMI 2.0b
Display Port 1 x DP 1.4a
1 x DP 1.4b via USB Type-C
MIPI DSI/ eDP 1x eDP1.4b
I/O
USB 2x USB 2.0 (via 10 pin wafer)
1x USB 2.0 Type A
3x USB 3.2 Gen 2 Type A
1x USB4.0 Type C
Audio 1x audio jack (mic in, line out)
UART 1x HSUART (via 10-pin wafer)
Serial Port 2x RS-232/422/485 10 pin headers
Expansion Slot 2x M.2 2280 M Key (PCIe Gen4x4),
1x M.2 2230 E Key (PCIe/USB)
1x M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
40-pin GPIO header yes
Connectivity
Ethernet 1x GbE (Intel® i219)
1x 2.5GbE (Intel® i226IT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3052)
Power
Power Requirement 12-36V DC input
Power Supply Type AT/ATX mode
Power Consumption (Typical) Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (typical)
Environmental & Certification
Cooling Active heatsink
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 362,068
Certification CE/FCC Class A, RoHS Compliant, REACH
Package
Net Weight 389g
Gross Weight 604g
Package dimension (L x W x H) 229×181×97mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2037
Accessories
Accessories 1x RTC Battery
1x Active heatsink
UPX-ADLPI5-A10-1600
Product Details
Name UP Xtreme i12. Core i5-1250PE. 16GB RAM
SKU UPX-ADLPI5-A10-1600
General
Processor Intel® Core™ i5-1250PE
Graphics Intel® Iris® Xe Graphics
VPU Optional (via M.2 2280)
Memory 16GB
eMMC / Storage via SATA or M.2 2280 NVMe*
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Windows* 10 Enterprise 2021 LTSC
Ubuntu 22.04
Yokuto (undecided)
Dimension 120.35×122.5mm
Display
HDMI 1 x HDMI 2.0b
Display Port 1 x DP 1.4a
1 x DP 1.4b via USB Type-C
MIPI DSI/ eDP 1x eDP1.4b
I/O
USB 2x USB 2.0 (via 10 pin wafer)
1x USB 2.0 Type A
3x USB 3.2 Gen 2 Type A
1x USB4.0 Type C
Audio 1x audio jack (mic in, line out)
UART 1x HSUART (via 10-pin wafer)
Serial Port 2x RS-232/422/485 10 pin headers
Expansion Slot 2x M.2 2280 M Key (PCIe Gen4x4),
1x M.2 2230 E Key (PCIe/USB)
1x M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
40-pin GPIO header yes
Connectivity
Ethernet 1x GbE (Intel® i219)
1x 2.5GbE (Intel® i226IT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3052)
Power
Power Requirement 12-36V DC input
Power Supply Type AT/ATX mode
Power Consumption (Typical) Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (typical)
Environmental & Certification
Cooling Active heatsink
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 362,068
Certification CE/FCC Class A,RoHS
Package
Net Weight 389g
Gross Weight 604g
Package dimension (L x W x H) 229×181×97mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2037
Accessories
Accessories 1x RTC Battery
1x Active heatsink
UPX-ADLPI7-A10-1600
Product Details
Name UP Xtreme i12. Core i7-1270PE. 16GB RAM
SKU UPX-ADLPI7-A10-1600
General
Processor Intel® Core™ i7-1270PE
Graphics Intel® Iris® Xe Graphics
VPU Optional (via M.2 2280)
Memory 16GB
eMMC / Storage via SATA or M.2 2280 NVMe*
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Windows* 10 Enterprise 2021 LTSC
Ubuntu 22.04
Yokuto (undecided)
Dimension 120.35×122.5mm
Display
HDMI 1 x HDMI 2.0b
Display Port 1 x DP 1.4a
1 x DP 1.4b via USB Type-C
MIPI DSI/ eDP 1x eDP1.4b
I/O
USB 2x USB 2.0 (via 10 pin wafer)
1x USB 2.0 Type A
3x USB 3.2 Gen 2 Type A
1x USB4.0 Type C
Audio 1x audio jack (mic in, line out)
UART 1x HSUART (via 10-pin wafer)
Serial Port 2x RS-232/422/485 10 pin headers
Expansion Slot 2x M.2 2280 M Key (PCIe Gen4x4),
1x M.2 2230 E Key (PCIe/USB)
1x M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
40-pin GPIO header yes
Connectivity
Ethernet 1x GbE (Intel® i219)
1x 2.5GbE (Intel® i226IT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3052)
Power
Power Requirement 12-36V DC input
Power Supply Type AT/ATX mode
Power Consumption (Typical) Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (typical)
Environmental & Certification
Cooling Active heatsink
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 362,068
Certification CE/FCC Class A,RoHS
Package
Net Weight 389g
Gross Weight 604g
Package dimension (L x W x H) 229×181×97mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2037
Accessories
Accessories 1x RTC Battery
1x Active heatsink
UPX-ADLPI7C-A10-1600
Product Details
Name UP Xtreme i12. Core i7-1260P. 16GB RAM
SKU UPX-ADLPI7C-A10-1600
General
Processor Intel® Core™ i7-1260P
Graphics Intel® Iris® Xe Graphics
VPU Optional (via M.2 2280)
Memory 16GB
eMMC / Storage via SATA or M.2 2280 NVMe*
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Windows* 10 Enterprise 2021 LTSC
Ubuntu 22.04
Yokuto (undecided)
Dimension 120.35×122.5mm
Display
HDMI 1 (HDMI 2.0)
Display Port 1 x DP 1.4a
1 x DP 1.4b via USB Type-C
MIPI DSI/ eDP 1x eDP1.4b
I/O
USB 2x USB 2.0 (via 10 pin wafer)
1x USB 2.0 Type A
3x USB 3.2 Gen 2 Type A
1x USB4.0 Type C
Audio 1x audio jack (mic in, line out)
UART 1x HSUART (via 10-pin wafer)
Serial Port 2x RS-232/422/485 10 pin headers
Expansion Slot 2x M.2 2280 M Key (PCIe Gen4x4),
1x M.2 2230 E Key (PCIe/USB)
1x M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
40-pin GPIO header yes
Connectivity
Ethernet 1x GbE (Intel® i219)
1x 2.5GbE (Intel® i226IT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3052)
Power
Power Requirement 12-36V DC input
Power Supply Type AT/ATX mode
Power Consumption (Typical) Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (typical)
Environmental & Certification
Cooling Active heatsink
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 362,068
Certification CE/FCC Class A,RoHS
Package
Net Weight 389g
Gross Weight 604g
Package dimension (L x W x H) 229×181×97mm
HS Code 8473302000
Country of Origin Taiwan
Accessories
Accessories 1x RTC Battery
1x Active heatsink
UP Xtreme i12 2D/3D Drawings N/A N/A Download
UP Xtreme i12 Test and Certifications N/A N/A Download
UP Xtreme i12 User Manual N/A N/A Download
UP Xtreme i12 Datasheet N/A N/A Download
