UP 5" LCD Kit
$129.00
Stock Available Now
SKU
UP-5LCD-A10-0001
UP 5" LCD Kit
■ eDP to LVDS Panel Kit for UP Series
■ 5" TFT Color LCD Module
■ Built-in Touch Screen
| Name | UP 5" LCD Kit |
|---|---|
| SKU | UP-5LCD-A10-0001 |
| Compatible UP product | All UP Products with eDP port (excluding UP/UP Squared/UP Core/UP Core Plus) |
|---|---|
| Dimension |
Converter Board: 65mm x 56mm LCD Panel: 134.6mm x 91.4mm |
| USB | USB Wafer x 2 |
|---|---|
| MIPI DSI/ eDP |
eDP Input x 2 (FPC x 1 (Optional), IPEX x 1) eDP Output x 1 (IPEX) (Optional) |
| Power Requirement |
eDP: 12V Power-in for Backlight, 3.3V Power-in for Panel Data USB: 5V Power-in for Touch Panel |
|---|
| Net Weight | 160 g |
|---|---|
| Gross Weight | 500 g |
| Country of Origin | Taiwan |

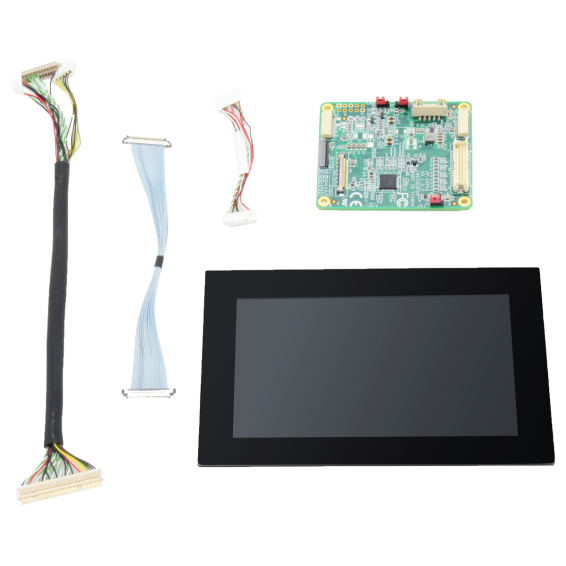

| Accessories |
• eDP to LVDS Converter Board • IPEX Cable • Power Cable • LVDS Cable • 5" LCD Touch Panel (CHEFREE: CF050KLDLWH-CA1) |
|---|
