UP Squared Pro Series

As low as $219.00
Only %1 left
SKU
UPN-APL series
Optional
  1. UPX i11/UPS Pro/UPS 6000/UPS Pro 7000 Power Supply 12V@6A <W/O Power cord >
    $15.99
  2. Hailo-8™ M.2 2280 B+M key
    Special Price $179.00 Regular Price $199.00
  3. UP AI Core XM 2280 (Myriad X *2)
    Special Price $174.00 Regular Price $194.00
  4. M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
    $29.99
  5. M.2 3042 LTE module kit (Global)
    $69.99
  6. 5G Module (North America)
    Special Price $239.00 Regular Price $339.00
  7. UP CAN Bus Carrier Board
    $59.00
  8. UP 5" LCD Kit
    $129.00

 Support Hailo-8™ AI Accelerator / Support up to 26 TOPs / Support Hailo-8™ Software Development Kit. Check Tutorial for more information.

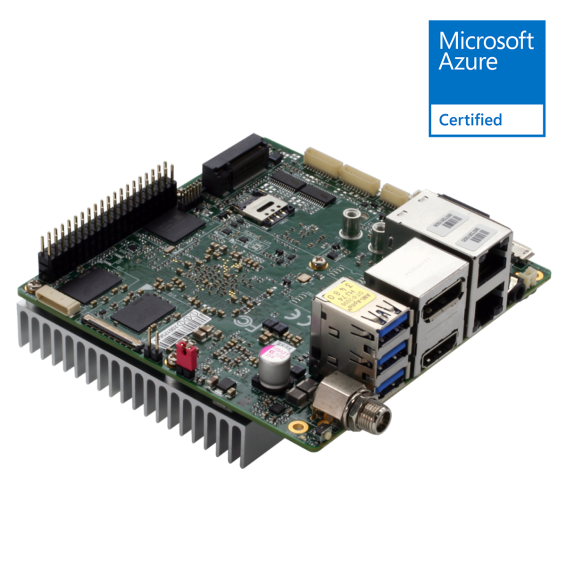

Building on the success of UP², the world's fastest x86 pro maker board, we now offer UP Squared Pro . Unlock the future of industrial automation and AI vision with 5G connectivity, taking your solutions to the PRO level.
Expansion boards are available for M.2 2230, M.2 2280, and M.2 3052, providing options for project-specific requirements as the ultimate edge solution. The board's industrial setup includes multiple serial ports, Ethernet ports (with TSN), 5G support, audio ports, and many other features for a variety of automation, robotics, drones, machine vision, Internet of Things, and more. It will be the best solution for your domain or product. of things.

UPN-APLC2F-A10-0432
Product Details
Name UP Squared Pro Celeron Duo Core 04/32
SKU UPN-APLC2F-A10-0432
General
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
VPU Optional (via M.2 2280)
Memory 4GB
eMMC / Storage 32 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Powered by Infineon TPM SLB9670
Compatible OS Microsoft Windows 10 full version, Linux (Ubuntu, Yocto)
Dimension 4" x 4" (10.16cm x 10.16cm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2)4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB3.0 type A x 3
USB 3.0 OTG Micro B x1
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Serial Port 2x RS232/422/485
Expansion Slot 1x M.2 2280 M Key (Support NVME SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key Correlation
1x Nano SIM
40-pin GPIO header 1
Connectivity
Ethernet 2 x GbLAN (Intel i210 AT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3042/3052)
Power
Power Requirement 12-24V DC-IN (lockable connector)
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 20 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours) 473,779 hours
Certification CE/FCC Class A,RoHS
Package
Net Weight 219g
Gross Weight 400g
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UPN-APLP4F-A10-0432
Product Details
Name UP Squared Pro Pentium Quad Core 04/32
SKU UPN-APLP4F-A10-0432
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 505
VPU Optional (via M.2 2280)
Memory 4GB
eMMC / Storage 32 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Powered by Infineon TPM SLB9670
Compatible OS Microsoft Windows 10 full version, Linux (Ubuntu, Yocto)
Dimension 4" x 4" (10.16cm x 10.16cm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2)4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB3.0 type A x 3
USB 3.0 OTG Micro B x1
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Serial Port 2x RS232/422/485
Expansion Slot 1x M.2 2280 M Key (Support NVME SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key Correlation
1x Nano SIM
40-pin GPIO header 1
Connectivity
Ethernet 2 x GbLAN (Intel i210 AT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3042/3052)
Power
Power Requirement 12-24V DC-IN (lockable connector)
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 20 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours) 473,779 hours
Certification CE/FCC Class A,RoHS
Package
Net Weight 219g
Gross Weight 400g
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UPN-APLP4F-A10-0864
Product Details
Name UP Squared Pro Pentium Quad Core 08/64
SKU UPN-APLP4F-A10-0864
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 505
VPU Optional (via M.2 2280)
Memory 8GB
eMMC / Storage 64 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Powered by Infineon TPM SLB9670
Compatible OS Microsoft Windows 10 full version, Linux (Ubuntu, Yocto)
Dimension 4" x 4" (10.16cm x 10.16cm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2)4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB3.0 type A x 3
USB 3.0 OTG Micro B x1
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Serial Port 2x RS232/422/485
Expansion Slot 1x M.2 2280 M Key (Support NVME SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key Correlation
1x Nano SIM
40-pin GPIO header 1
Connectivity
Ethernet 2 x GbLAN (Intel i210 AT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3042/3052)
Power
Power Requirement 12-24V DC-IN (lockable connector)
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 20 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours) 473,779 hours
Certification CE/FCC Class A,RoHS
Package
Net Weight 219g
Gross Weight 400g
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UPN-APLX7F-A10-0464
Product Details
Name UP Squared Pro Atom Quad Core 04/64
SKU UPN-APLX7F-A10-0464
General
Processor Intel Atom® x7-E3950
Graphics Intel® HD Graphics 505
VPU Optional (via M.2 2280)
Memory 4GB
eMMC / Storage 64 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Powered by Infineon TPM SLB9670
Compatible OS Microsoft Windows 10 full version, Linux (Ubuntu, Yocto)
Dimension 4" x 4" (10.16cm x 10.16cm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2)4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB3.0 type A x 3
USB 3.0 OTG Micro B x1
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Serial Port 2x RS232/422/485
Expansion Slot 1x M.2 2280 M Key (Support NVME SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key Correlation
1x Nano SIM
40-pin GPIO header 1
Connectivity
Ethernet 2 x GbLAN (Intel i210 AT)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via M.2 3042/3052)
Power
Power Requirement 12-24V DC-IN (lockable connector)
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 20 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours) 473,779 hours
Certification CE/FCC Class A,RoHS
Package
Net Weight 219g
Gross Weight 400g
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink

Features of TSN <br>Support
802.1AS (time synchronization)
project-based only
802.1 Qav (CBS)
Y
802.1Qbv (TAS)
Y


Unleash the power of the powerful Intel Atom® processor! Based on the powerful Intel platform Apollo Lake, the UP² Pro is a computer numerical control (CNC) machine, real-time control, human-machine interface and tool applications. , medical imaging and diagnostics, and other applications to enable workload consolidation. High resolution with AI capabilities, need HDR output



Industrial & Secure
The UP² Pro is made for industrial use and comes with a 12V to 24V lockable power connector Limited for traffic scheduled over a switched Ethernet network over a Time Sensitive Network (TSN) Industrial I/O: COM Ports (2x RS232/422/485) Powered by Infineon TPM SLB9570 Comes with Audio Jack Line I/O and more.



fast

Intel® Ethernet Controller i210 for ultra-reliable low-latency communication with 5G support

Proof of AI <br>OpenVino Integrated Intel® Movidius Myriad® (UP AI Core XM) Family for Vision Analytics
Industrial automation with AI and 5G

Expansion
40-pin Expansion and Versatile I/O), SATA3
M.2 2230 E-key, M.2 2280 M-key and M.2 3052 B-key enable seamless integration.
Ready to connect: 5G, AI, WiFi, Bluetooth.

Production-ready computing system
UP Squared Pro is production ready for multiple vertical markets including automation, robotics, retail, vision and agriculture. Ships worldwide within 7 days.

Ecosystems and technical communities are available to minimize difficulties during project development.

For technical help and documentation, UP Squared Pro — upcommunity (up-community.org)

pdf MTBF Report, UP Squared Pro pdf 263.4 KB Download
pdf UP Squared Pro Board Quick Start Guide - QSG English pdf 1.2 MB Download
UP Squared Pro User Manual & Datasheet N/A N/A Download
UP Squared Pro Tests and Certification N/A N/A Download
UP Squared Pro 2D/3D drawing N/A N/A Download
