UP Squared 6000 series
Support Hailo-8™ AI Accelerator / Support up to 26 TOPs / Support Hailo-8™ Software Development Kit. Check Tutorial for more information.
The UP Squared 6000 is the latest addition to our extensive UP Squared lineup. Based on the latest Intel® Atom® x6000E series, Intel Pentium® and Celeron® N and J series processors (formerly Elkhart Lake),
UP Squared 6000 is built for automation, robotics and industrial applications with Time-Sensitive Networking (TSN), Time-Coowned Computing (TCC)*, in-band ECC*, onboard TPM 2.0*, PSE applications Additional carrier boards* to unlock .
You can also check Edge Insights for Vision
| Name | UP Squared 6000 Celeron 02/32 |
|---|---|
| SKU | UPN-EHLCN2-A10-0232 |
| Processor | Intel® Celeron® N6210 |
|---|---|
| Graphics | Intel® Graphics GEN 10 16EU 250Mhz (750Mhz Turbo) |
| VPU | Optional (via M.2 2280) |
| Memory | 2GB |
| eMMC / Storage | 32 GB |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| Compatible OS | Windows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1 |
| Dimension | 4" x 4" (10.16cm x 10.16cm) |
| HDMI | 1 x HDMI 2.0b |
|---|---|
| Display Port | 1 x DP 1.2 |
| MIPI DSI/ eDP | N/A |
| USB | 2x USB 3.2 Gen2 Type A (STACK connector) |
|---|---|
| Audio | Audio jack line in/out |
| UART | 1 x UART via carrier board |
| Serial Port | N/A |
| Expansion Slot | 1x M.2 2242/2280 M Key (supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key, 1x micro-SIM slot |
| 40-pin GPIO header | 1 |
| MIPI-CSI | N/A |
| Ethernet | 1x 1 GbE RJ-45 (Intel I211-AT), 1x 1/2.5 GbE RJ-45 (Intel I225-V, supports TSN) |
|---|---|
| Wi-Fi | Optional (via M.2 2230) |
| Bluetooth | Optional (via M.2 2230) |
| LTE / 4G / 5G | Optional (via M.2 3042/3052) |
| Power Requirement | 12V (with +/- 5% tolerance) |
|---|---|
| Power Supply Type | AT (default) /ATX |
| Power Consumption (Typical) | 22 watts |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 0℃～60℃ |
| Storage temperature | -40°F ～ 176°F (-40°C ～ 80°C) |
| MTBF (Hours) | 402,617 hours |
| Certification | CE/FCC Class A |
| Net Weight | 200g |
|---|---|
| Gross Weight | 350g |
| Package dimension (L x W x H) | 157×147×68mm |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
| Longevity | 2035 |
|---|
| Accessories | 1x RTC battery, 1x passive heatsink |
|---|
| Name | UP Squared 6000 Pentium 04/32 |
|---|---|
| SKU | UPN-EHLPJ4-A10-0432 |
| Processor | Intel® Pentium® J6426 |
|---|---|
| Graphics | Intel® Graphics GEN 10 32EU 400Mhz (850Mhz Turbo) |
| VPU | Optional (via M.2 2280) |
| Memory | 4GB |
| eMMC / Storage | 32 GB |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| Compatible OS | Windows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1 |
| Dimension | 4" x 4" (10.16cm x 10.16cm) |
| HDMI | 1 x HDMI 2.0b |
|---|---|
| Display Port | 1 x DP 1.2 |
| MIPI DSI/ eDP | N/A |
| USB | 2x USB 3.2 Gen2 Type A (STACK connector) |
|---|---|
| Audio | Audio jack line in/out |
| UART | 1 x UART via carrier board |
| Serial Port | N/A |
| Expansion Slot | 1x M.2 2280 M Key (Supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3052 B Key, 1x Micro SIM Slot |
| 40-pin GPIO header | 1 |
| MIPI-CSI | N/A |
| Ethernet | 1x 1 GbE RJ-45 (Intel I211-AT), 1x 1/2.5 GbE RJ-45 (Intel I225-V, supports TSN) |
|---|---|
| Wi-Fi | Optional (via M.2 2230) |
| Bluetooth | Optional (via M.2 2230) |
| LTE / 4G / 5G | Optional (via M.2 3042/3052) |
| Power Requirement | 12V (with +/- 5% tolerance) |
|---|---|
| Power Supply Type | AT (default) /ATX |
| Power Consumption (Typical) | 22 watts |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 0℃～60℃ |
| Storage temperature | -40°F ～ 176°F (-40°C ～ 80°C) |
| MTBF (Hours) | 402,617 hours |
| Certification | CE/FCC Class A |
| Net Weight | 200g |
|---|---|
| Gross Weight | 350g |
| Package dimension (L x W x H) | 157×147×68mm |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
| Longevity | 2035 |
|---|
| Accessories | 1x RTC battery, 1x passive heatsink |
|---|
| Name | UP Squared 6000 Atom 04/32 |
|---|---|
| SKU | UPN-EHLX4E-A10-0432 |
| Processor | Intel Atom® x6413E |
|---|---|
| Graphics | Intel® Graphics GEN 10 16EU 500Mhz (750Mhz Turbo) |
| VPU | Optional (via M.2 2280) |
| Memory | 4GB |
| eMMC / Storage | 32 GB |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | Equipped with TPM2.0 |
| Compatible OS | Windows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1 |
| Dimension | 4" x 4" (10.16cm x 10.16cm) |
| HDMI | 1 x HDMI 2.0b |
|---|---|
| Display Port | 1 x DP 1.2 |
| MIPI DSI/ eDP | 1x eDP (4K@60hz) |
| USB | 2x USB 3.2 Gen2 Type A (STACK connector), 1xUSB 3.2 Gen2 Type C (OTG support) |
|---|---|
| Audio | Audio jack line in/out |
| UART | 1 x UART via carrier board |
| Serial Port | 1x RS232/422 |
| Expansion Slot | 1x M.2 2280 M Key (Supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3052 B Key, 1x Micro SIM Slot |
| 40-pin GPIO header | 1 |
| MIPI-CSI | N/A |
| Others | 1x 100 pin GP bus |
| Ethernet | 1x 1 GbE RJ-45 (Intel I211-AT), 1x 1/2.5 GbE RJ-45 (Intel I225-V, supports TSN) |
|---|---|
| Wi-Fi | Optional (via M.2 2230) |
| Bluetooth | Optional (via M.2 2230) |
| LTE / 4G / 5G | Optional (via M.2 3042/3052) |
| Power Requirement | 12V (with +/- 5% tolerance) |
|---|---|
| Power Supply Type | AT (default) /ATX |
| Power Consumption (Typical) | 22 watts |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 0℃～60℃ |
| Storage temperature | -40°F ～ 176°F (-40°C ～ 80°C) |
| MTBF (Hours) | 402,617 hours |
| Certification | CE/FCC Class A |
| Net Weight | 200g |
|---|---|
| Gross Weight | 350g |
| Package dimension (L x W x H) | 157×147×68mm |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
| Longevity | 2035 |
|---|
| Accessories | 1x RTC battery, 1x passive heatsink |
|---|
powerful
The 1-UP Squared 6000 is powered by the latest generation Intel® processors (formerly Elkhart Lake) with a TDP of just 12 Watts.
Intel UHD Graphics deliver a 2x performance improvement over the previous generation. It can drive up to 3 displays with resolutions up to 4kp60.
graphics and media
Integrated Intel® UHD Graphics supports various video encoding/decoding requirements. Native codec support: H.264, MPEG2, VC-1/WMV9, VC1, H.265/HEVC, VP8, VP9, JPEG/MPEG
Note: MPEG2, VC-1/WMV9, VC1, VP8 only support decoding. VP9 encoding only supports Windows 10.
Industrial & Secure
12V DC input
Real-Time: Intel® Time-Sensitive Networking (TSN) and Time-Coordinated Computing (TCC)* Industrial I/O: Serial port + standard 40 pins on board. (Additional 40 pins programmable on optional carrier board and 2x LAN*)
Cost-effective: Intel® In-Band ECC* prevents data corruption without using ECC memory.
Hardware-Based Security: Built-in Intel® AES New Instructions (Intel® AES-NI), Intel® SHA
An extension, Intel® Secure Key Technology, supports hardware-accelerated cryptographic operations without compromising productivity.
Onboard Trusted Platform Module (TPM 2.0) is supported (depending on SKU).
fast
40% better CPU performance
High speed storage support (NVMe over M.2 2280)
Up to 4x GbLAN (1x Gb LAN+ 1x 2.5GbLAN onboard, additional 2x GbLAN (via carrier board*))
5G connectivity up to 20Gb/s via M.2 3052 B key
AI-enabled
Optional VPU with added Intel® Movidius™ Myriad™ X (UP AI Core XM) for AI acceleration.
Compatible with Intel OpenVino Toolkit.
Expansion
Multiple M. 2 expansion
100-pin docking for optional carrier board* provides programmable 40-pin, CAN, additional 2x Gb LAN, mPCIe, audio jack line and serial ports.
Production-ready computing system
The UP Squared 6000 is production-ready for multiple vertical markets such as automation, robotics, retail, vision and agriculture.
Ships worldwide within 7 days.
Ecosystems and technical communities are available to minimize difficulties during project development.
For technical help and documentation: UP Squared Pro — upcommunity (up-community.org)
|
UP Squared 6000 Quick Start Guide (Link) | N/A | N/A | Download |
|
|
UP Squared 6000 Ubuntu image | N/A | N/A | Download |
|
|
UP Squared 6000 User Manual | N/A | N/A | Download |
|
|
UP Squared 6000 Datasheet | N/A | N/A | Download |
|
|
UP Squared 6000 Board 2D/3D Drawing | N/A | N/A | Download |
|
|
UP Squared 6000 Test and Certification | N/A | N/A | Download |
-
UP Squared 6000 Edge seriesAs low as $449.00 -

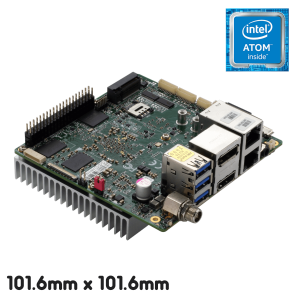

UP Squared Pro SeriesAs low as $269.00 -
