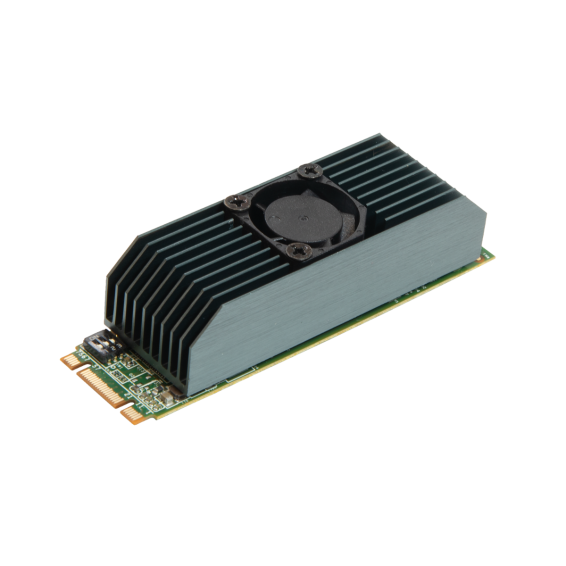

UP AI Core XM 2280 (Myriad X *2)

Stock Available Now

AI CORE with 2x Movidius Myriad X VPU
Compatible with X86 SBC with M.2 2280 B or M key. Dimension - 3.15" x 0.87" (80 mm x 22 mm)
N.B. Please do not remove the heatsink by your own as it might pull off other components at the same time

Product Details
Name UP AI Core XM 2280 (Myriad X *2)
SKU PER-TAIX2-A10-2280
IC Intel® Movidius™ Myriad™ X VPU 2485
Memory 8GB
Interface PCIe
Form Factor M.2 2280 (B+M key)
Support Framework TensorFlow, Caffe, MXNet, Kaldi, ONNX
Compatible OS Ubuntu 16.04, Windows® 10
Environmental & Certification
Cooling Active heatsink
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C)
Certification CE/FCC Class A
Gross Weight 300 g
Country of Origin Taiwan

AI Core comes equipped with a active heatsink; please check the available space and potential mechanical conflicts. Heatsink can be easily removed and replaced
The active heatsink size won't fit into laptop.

zip XM 2280 Cooler Drawings zip 685.9 KB Download
zip AI Core XM 2280 Test Reports and Certifications zip 4.7 MB Download
zip AI Core XM 2280 Drawings and Layout zip 3.9 MB Download
zip AI CORE XM 2280 2D and 3D drawings (Fanned version zip 1.5 MB Download
pdf AI core xm 2280 Quick Start Guide pdf 788.4 KB Download
