UP 4000 series

As low as $129.00
Only %1 left
SKU
UP-APL
Optional
  1. UP7000/UP 4000/UPS V2/UPC Plus power supply 12V@5A<W/O power cord>
    $12.99
  2. UP 4000 carrier board for WiFi and 5G module
    $24.90
  3. UP 4000 carrier board for M.2 2280
    $24.90
  4. UP CAN Bus Carrier Board
    $59.00
  5. UP 4000 POE Expansion Board
    $59.00
  6. UP 4000 aluminum chassis
    $49.00

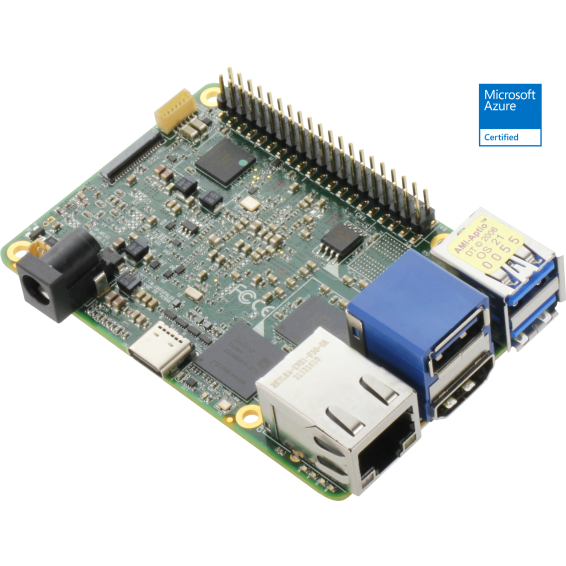

The UP 4000 is the next generation credit card size successor to the UP Board series. The UP 4000 offers a more efficient and versatile platform for automation, robotics and retail services.
With a wide range of I/O options such as 12V standard industrial power input, increased memory options, multiple video output ports, audio line input/output, high speed USB ports and other rich I/O, the UP 4000 is low power consumption. Provides high performance with power. Consume in a form factor that fits anywhere.

UP-APL03P4F-A10-0432
Product Details
Name UP 4000 Pentium 04/32
SKU UP-APL03P4F-A10-0432
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 500
Memory 4GB
eMMC / Storage 32 GB
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
Dimension 3.37" x 2.22" (85.6mm x 56.5mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 x DP 1.2 via USB TYPE C
I/O
USB USB2.0 pin header x 2
USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 6-pin wafer (mic in/line out)
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1x FPC connector for optional M.2 carrier board
40-pin GPIO header 1
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Wi-Fi Optional via carrier board M.2 2230
Bluetooth Via UP BT Kit (UP-BTKIT-A10-0001)
LTE / 4G / 5G Optional via carrier board M.2 3042/3052
Power
Power Requirement 12V DC input @ 5A
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 6-12 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
Certification CE/FCC Class A,RoHS
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UP-APL03P4F-A10-0864
Product Details
Name UP 4000 Pentium 08/64
SKU UP-APL03P4F-A10-0864
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 505
Memory 8GB
eMMC / Storage 64 GB
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
Dimension 3.37" x 2.22" (85.6mm x 56.5mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 x DP 1.2 via USB TYPE C
I/O
USB USB2.0 pin header x 2
USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 6-pin wafer (mic in/line out)
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1x M.2 2230 E Key
1x POE RJ45 Ethernet connector
40-pin GPIO header 1
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Wi-Fi Optional via carrier board M.2 2230
Bluetooth Via UP BT Kit (UP-BTKIT-A10-0001)
LTE / 4G / 5G Optional via carrier board M.2 3042/3052
Power
Power Requirement 12V DC input @ 5A
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 6-12 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
Certification CE/FCC Class A,RoHS
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UP-APL03C2F-A10-0232
Product Details
Name UP 4000 Celeron 02/32
SKU UP-APL03C2F-A10-0232
General
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
Memory 2GB
eMMC / Storage 32 GB
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
Dimension 3.37" x 2.22" (85.6mm x 56.5mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 x DP 1.2 via USB TYPE C
I/O
USB USB2.0 pin header x 2
USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 6-pin wafer (mic in/line out)
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x FPC connector for optional M.2 carrier board
40-pin GPIO header 1
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Wi-Fi Optional via carrier board M.2 2230
Bluetooth Via UP BT Kit (UP-BTKIT-A10-0001)
LTE / 4G / 5G Optional via carrier board M.2 3042/3052
Power
Power Requirement 12V DC input @ 5A
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 6-12 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
Certification CE/FCC Class A,RoHS
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UP-APL03X7F-A10-0464
Product Details
Name UP 4000 Atom 04/64
SKU UP-APL03X7F-A10-0464
General
Processor Intel Atom® x7-E3950
Graphics Intel® HD Graphics 505
Memory 4GB
eMMC / Storage 64 GB
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
Dimension 3.37" x 2.22" (85.6mm x 56.5mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 x DP 1.2 via USB TYPE C
I/O
USB USB2.0 pin header x 2
USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 6-pin wafer (mic in/line out)
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1x M.2 2230 E Key
1x POE RJ45 Ethernet connector
40-pin GPIO header 1
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Wi-Fi Optional via carrier board M.2 2230
Bluetooth Via UP BT Kit (UP-BTKIT-A10-0001)
LTE / 4G / 5G Optional via carrier board M.2 3042/3052
Power
Power Requirement 12V DC input @ 5A
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 6-12 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
Certification CE/FCC Class A,RoHS
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UP-APL03C2FLH-A10-0432
Product Details
Name UP 4000 Celeron 04/32 Low Heatsink
SKU UP-APL03C2FLH-A10-0432
General
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
Memory 4GB
eMMC / Storage 32 GB
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
Dimension 3.37" x 2.22" (85.6mm x 56.5mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 x DP 1.2 via USB TYPE C
I/O
USB USB2.0 pin header x 2
USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 6-pin wafer (mic in/line out)
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1x FPC connector for optional M.2 carrier board
40-pin GPIO header 1
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Wi-Fi Optional via carrier board M.2 2230
Bluetooth Via UP BT Kit (UP-BTKIT-A10-0001)
LTE / 4G / 5G Optional via carrier board M.2 3042/3052
Power
Power Requirement 12V DC input @ 5A
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 6-12 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
Certification CE/FCC Class A,RoHS
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink
UP-APL03C2FLH-A10-0216
Product Details
Name UP4000 Celeron 02/16 Low Heatsink
SKU UP-APL03C2FLH-A10-0216
General
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
Memory 2GB
eMMC / Storage 16 GB
FPGA Lattice
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM Equipped with TPM2.0
Compatible OS Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
Dimension 3.37" x 2.22" (85.6mm x 56.5mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 x DP 1.2 via USB TYPE C
I/O
USB USB2.0 pin header x 2
USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 6-pin wafer (mic in/line out)
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x FPC connector for optional M.2 carrier board
40-pin GPIO header 1
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Wi-Fi Optional via carrier board M.2 2230
Bluetooth Via UP BT Kit (UP-BTKIT-A10-0001)
LTE / 4G / 5G Optional via carrier board M.2 3042/3052
Power
Power Requirement 12V DC input @ 5A
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 6-12 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃~60℃
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
Certification CE/FCC Class A,RoHS
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x RTC Battery
1x passive heatsink

For technical help and documentation, UP 4000 — upcommunity (up-community.org)

UP 4000 Windows 10 64-bit drivers N/A N/A Download
UP 4000 Test and Certification N/A N/A Download
UP 4000 2D/3D drawings N/A N/A Download
UP 4000 User Manual N/A N/A Download
UP 4000 Datasheet N/A N/A Download
UP4000 Low Heatsink Drawing N/A N/A Download
UP 4000 Low Heatsink Datasheet N/A N/A Download
