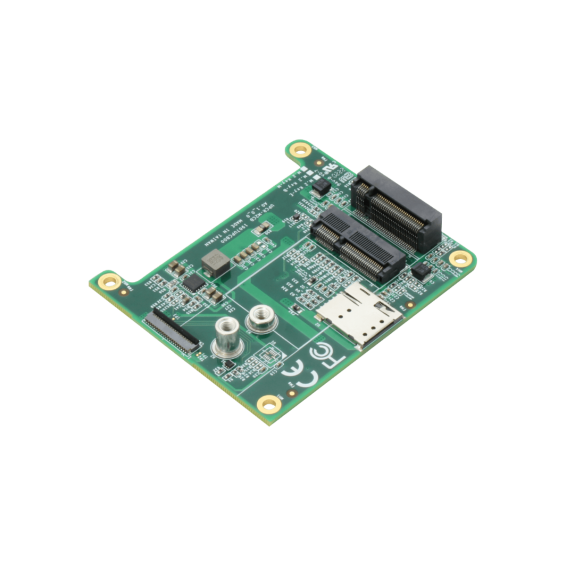

UP 4000 carrier board for WiFi and 5G module

$24.90

Stock Available Now

SKU

UP-APL03CB-A10-0001

Optional

Add to Cart

M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
$29.99

Qty:
Add to Cart

5G Module (North America)
Special Price $239.00 Regular Price $339.00

Qty:

Unlock the expansion capability for you UP 4000 board via the carrier board and FPC cable

Carrier Board. M.2 2230 E and M.2 3042/3052 B. For WiFi and 4G/5G expansion

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP 4000 carrier board for WiFi and 5G module
SKU	UP-APL03CB-A10-0001

General
Compatible UP product	UP 4000

I/O
Expansion Slot	1x M.2 2230 E-Key (PCIe + USB2.0) 1x M.2 3042/ 3052 B-Key (USB3.0) with push-push Nano SIM socket

Environmental & Certification
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Certification	CE/FCC Class A,RoHS

Package
Net Weight	20 g
Gross Weight	60 g
Package dimension (L x W x H)	51 x 60 mm
Country of Origin	Taiwan

Accessories
Accessories	1x FPC Cable Screw pack

More Info

Please change the BIOS setting when using Intel® Wireless-AC 9260 M.2 WiFi module with UP 4000 platform.

BIOS -> CRB Setup -> CRB Chipset -> South Closter Configuration -> PCI Express Configuration -> PCI Express Root Port 1 -> PCIe Speed => Change to Gen2.

BIOS -> CRB Setup -> CRB Chipset -> South Closter Configuration -> PCI Express Configuration -> PCI Express Root Port 1 -> PCIe Selectable De-em => Change to Disable.

More details can be found in below WiKi page link:

https://github.com/up-board/up-community/wiki/Wireless

Downloads

	UP 4000 Carrier Board	pdf	326.7 KB	Download
	UP 4000 CB User Manual	pdf	1.1 MB	Download
