UP Squared Series

As low as $159.00
 
Only %1 left
SKU
UPS-APL series
Optional
  1. UP/UP Squared/UP core power supply 5V@6A<W/O Power Cord>
    $13.99
  2. UP 3G HAT Module
    Special Price $25.99 Regular Price $45.00
  3. M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
    $29.99
  4. mPCIe 3G module kit
    Special Price $9.99 Regular Price $59.99
  5. mPCIe LTE module kit (Global)
    $69.99
  6. UP Squared Case ABS plastic
    $13.99
  7. Active cooler( fan) for the UP Squared
    $11.99
Add to Wish List Add to Compare

UP Squared inherits the 40-pin GP bus from the first generation UP, with more I/O interfaces and more CPU power.

Choose your UP Squared board from different variations. Package includes board only

*Standard SKUs do not come with OS. Please check the description.

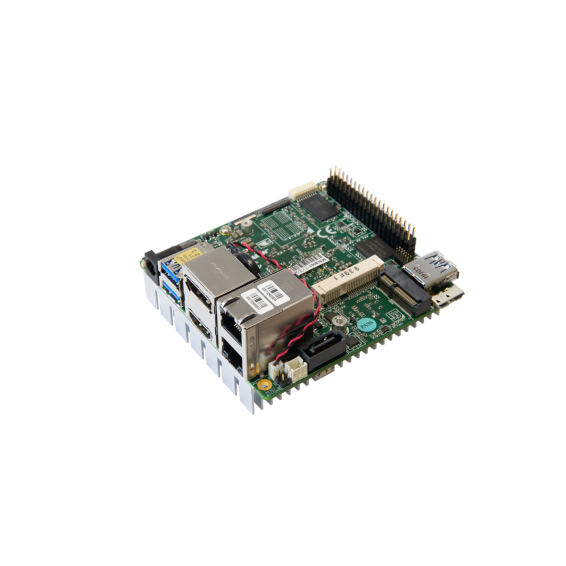

main product photo
UPS-APLC2F-A20-0232
Product Details
Name UP Squared Celeron Duo Core 02/32
SKU UPS-APLC2F-A20-0232
General
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
VPU Optional (via mPCIe)
Memory 2GB
eMMC / Storage 32 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2）4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB2.0 Type A x 1
USB2.0 pin header x 1
USB3.0 type A x 3
USB 3.0 OTG Micro B x1
Audio I2S audio port
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header 1
MIPI-CSI 1x MIPI-CSI 2 lanes, 1x MIPI-CSI 4 lanes
Connectivity
Ethernet 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via mPCIe)
Power
Power Requirement 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 18 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 173,446 hours
Certification CE/FCC Class A
Package
Net Weight 210.5 grams
Gross Weight 289.8 grams
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x UP Square Board
1x RTC Battery
1x passive heatsink
UPS-APLC2F-A20-0432
Product Details
Name UP Squared Celeron Duocore 04/32
SKU UPS-APLC2F-A20-0432
General
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
VPU Optional (via mPCIe)
Memory 4GB
eMMC / Storage 32 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2）4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB2.0 Type A x 1
USB2.0 pin header x 1
USB3.0 type A x 3
USB 3.0 OTG Micro B x1
Audio I2S audio port
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header 1
MIPI-CSI 1x MIPI-CSI 2-lane, 1x MIPI-CSI 4-lane
Connectivity
Ethernet 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via mPCIe)
Power
Power Requirement 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 18 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 173,446 hours
Certification CE/FCC Class A
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x UP Square Board
1x RTC Battery
1x passive heatsink
UPS-APLP4F-A20-0432
Product Details
Name UP Squared Pentium Quad Core 04/32
SKU UPS-APLP4F-A20-0432
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 500
VPU Optional (via mPCIe)
Memory 4GB
eMMC / Storage 32 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2）4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB2.0 Type A x 1
USB2.0 pin header x 1
USB3.0 type A x 3
USB 3.0 OTG Micro B x1
Audio I2S audio port
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header 1
MIPI-CSI 1x MIPI-CSI 2 lanes, 1x MIPI-CSI 4 lanes
Connectivity
Ethernet 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via mPCIe)
Power
Power Requirement 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 18 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 173,446 hours
Certification CE/FCC Class A
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x UP Square Board
1x RTC Battery
1x passive heatsink
UPS-APLP4F-A20-0864
Product Details
Name UP Squared Pentium Quad Core 08/64
SKU UPS-APLP4F-A20-0864
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 500
VPU Optional (via mPCIe)
Memory 8GB
eMMC / Storage 64 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2）4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB2.0 Type A x 1
USB2.0 pin header x 1
USB3.0 type A x 3
USB 3.0 OTG Micro B x1
Audio I2S audio port
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header 1
MIPI-CSI 1x MIPI-CSI 2 lanes, 1x MIPI-CSI 4 lanes
Connectivity
Ethernet 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via mPCIe)
Power
Power Requirement 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 18 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 173,446 hours
Certification CE/FCC Class A
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x UP Square Board
1x RTC Battery
1x passive heatsink
UPS-APLP4F-A20-08128
Product Details
Name UP Squared Pentium Quad Core 08/128
SKU UPS-APLP4F-A20-08128
General
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 500
VPU Optional (via mPCIe)
Memory 8GB
eMMC / Storage 128 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2）4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB2.0 Type A x 1
USB2.0 pin header x 1
USB3.0 type A x 3
USB 3.0 OTG Micro B x1
Audio I2S audio port
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header 1
MIPI-CSI 1x MIPI-CSI 2 lanes, 1x MIPI-CSI 4 lanes
Connectivity
Ethernet 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via mPCIe)
Power
Power Requirement 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 18 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 173,446 hours
Certification CE/FCC Class A
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x UP Square Board
1x RTC Battery
1x passive heatsink
UPS-APLX7F-A20-0864
Product Details
Name UP Square Atom Quad Core 08/64
SKU UPS-APLX7F-A20-0864
General
Processor Intel Atom® x7-E3950
Graphics Intel® HD Graphics 500
VPU Optional (via mPCIe)
Memory 8GB
eMMC / Storage 64 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
RTC Yes
Wake-on-LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
Compatible OS Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1 (DP 1.2）4K @ 60 hz
MIPI DSI/ eDP 1×eDP
I/O
USB USB2.0 Type A x 1
USB2.0 pin header x 1
USB3.0 type A x 3
USB 3.0 OTG Micro B x1
Audio I2S audio port
UART 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header 1
MIPI-CSI 1x MIPI-CSI 2 lanes, 1x MIPI-CSI 4 lanes
Connectivity
Ethernet 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi Optional (via M.2 2230)
Bluetooth Optional (via M.2 2230)
LTE / 4G / 5G Optional (via mPCIe)
Power
Power Requirement 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type AT (default) /ATX
Power Consumption (Typical) 18 watts
Environmental & Certification
Cooling Passive cooling (fanless)
Operating Temperature 0℃～60℃
Storage temperature -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours) 173,446 hours
Certification CE/FCC Class A
Package
Net Weight 210.5g
Gross Weight 289.8g
Package dimension (L x W x H) 126×122×57mm
HS Code 8473302000
Country of Origin Taiwan
Longevity
Longevity 2031
Accessories
Accessories 1x UP Square Board
1x RTC Battery
1x passive heatsink

Intel's official AI development platform. Follow Intel on how to use UP Squared in AI and IoT.

UP Squared supports MRAA/UPM sensors. Check the sensor list.

UP Squared comes with 2GB/4GB/8GB LPDDR4 and 32GB/64GB/128GB eMMC. The 40-pin GP bus gives manufacturers the freedom to build modules. Additionally, there is a 60-pin EXHAT for embedded applications. This allows us to explore more possibilities. UP Squared's extension is much better than this. Native mini-PCI-e, M.2 2230 and SATA3 are all built into the board.


Unleash the power of Intel's Atom® processor! With a 40-pin I/O connector, multiple USB 3.0 ports, double Gigabit Ethernet, HDMI and many other features, it can be used in robots, drones, machine vision, smart homes, education, Digital signage, intelligent cars, and the Internet of Things. Compatibility with Linux, Android, and all Windows 10 distributions provides greater flexibility, scalability, and faster time to market.

Github and other resources

Running WIN IoT Core on UP Squared

Run Android on UP Squared

Upsquared and robotics

MQTT publication to AWS

Azure IoT Edge on UP Squared

Visit the UP Community to get all the documentation. and technical support

pdf UP Squared Manual pdf 1.3 MB Download
pdf UP Squared Quick Start Guide pdf 1.1 MB Download
pdf UP Squared Quick Start Guide German pdf 1.3 MB Download
UP Squared / UP Core Plus Windows IoT Core RS5_17763 N/A N/A Download
zip UP Squared metal chassis logo plate zip 9.3 KB Download
zip How to Access ADC for UP Squared Atom zip 9.3 MB Download
zip UP Squared Test and Certification zip 3.4 MB Download
pdf UP Squared Connectors Description UPS-APL pdf 530.4 KB Download
zip UP Squared 2D/3D drawing zip 2.4 MB Download
zip UP Squared 3D files board + heatsink zip 4.5 MB Download
pdf UP Squared Yocto pdf 59 KB Download
pdf Open Vino UP Squared pdf 36.1 KB Download
Related Products
  1. UP Squared Edge [8GB RAM]
    UP Squared Edge [8GB RAM]
    $399.00
  2. UP Squared IoT Edge [WiFi+ LTE-Global]
    UP Squared IoT Edge [WiFi+ LTE-Global]
    $549.00
  3. UP Squared i12 Series
    UP Squared i12 Series
    As low as $599.00
Privacy and Cookie Policy Terms and Conditions
Copyright © 2024 All rights reserved.
