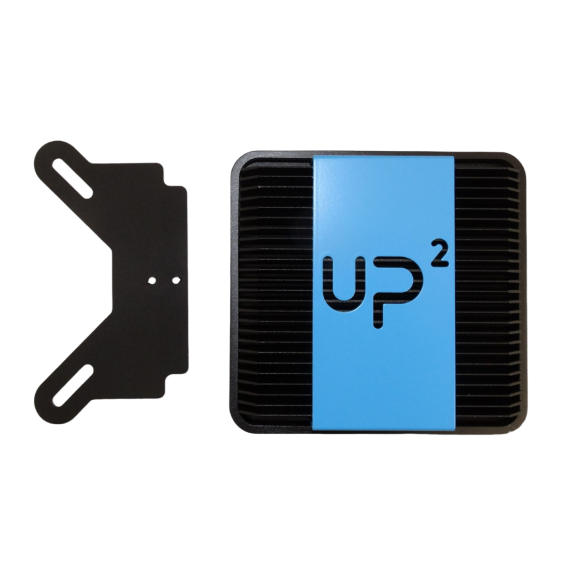

UP Squared fanless chassis for Atom E39XX CPU with VESA mounting plate

$28.99
Stock Available Now
SKU
EP-CHUPSMTVBPLX

Aluminum alloy metal chassis, designed for the UP Squared board.

It is not compatible with UP Squared v2

Product Details
Name UP Squared fanless chassis for Atom E39XX CPU with VESA mounting plate
SKU EP-CHUPSMTVBPLX
General
Compatible UP product UP Squared Boards
Package
Gross Weight 600 g
Package dimension (L x W x H) 125 x 125 x 70mm
HS Code 84733000006
Country of Origin China

To have best fit for the height of Apollo Lake ATOM Processor. Aluminum alloy metal chassis, designed for the UP Squared board (compatible with E3940 & E3950 SKU).

Including 75/100 VESA mounting kit plus two screw-holes to mount the UP AI Core heat pipe on the right side of the chassis.

***UP Squared board is not including in the package***

UP Squared AL Housing for Atom E39XX CPU,105x100x56.4 mm, Sandblasting &anodized black, Vesa Mount,Protection Cap for 4xSMA hole, whitebox packing



Design your own logo plate?

In case you would like to re-brand the logo of UP Squared metal chassis, we have 3D drawing for you.

The logo plate of UP Squared is designed as a replaceable part, you can have your local supplier to make it for you. You can download from below

zip STP 3D drawing EP-CHUPSMTVBPLX zip 11.3 MB Download
zip STP file_EP-CHUPSMTVBPLX zip 11.3 MB Download
pdf Datasheet_EP-CHUPSMTVBPLX pdf 221 KB Download
pdf Assembly SOP-User Manual-EP-CHUPSMTVBPLX pdf 1.2 MB Download
