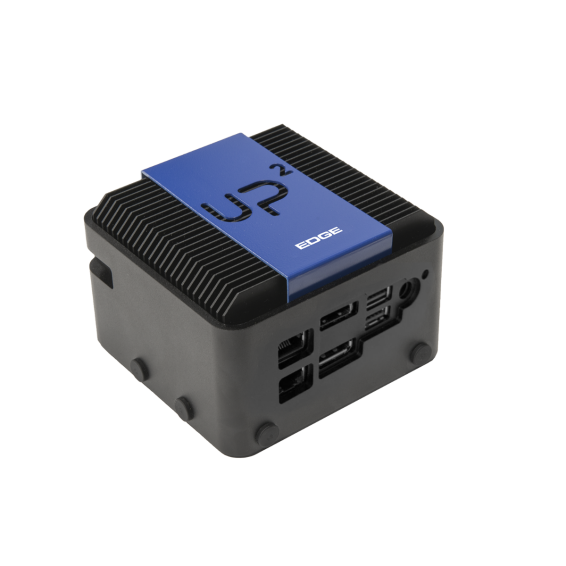

UP Squared Edge [8GB RAM]

$399.00

Schedule TBD

SKU

UPS-EDGE-X70864-U01

Optional

Add to Cart

M.2 2230 Wi-Fi 6E Kit (Intel® Wi-Fi 6E AX210)
$34.90

Qty:
Add to Cart

M.2 2230 WiFi kit (RE-WFKIT-9260NVP)
$29.99

Qty:

Intel® Apollo Lake SoC ATOM x7-E3950,8GB or 4GB LPDDR4 memory, 64GB eMMC Storage
2 x Gigabit LAN,1 x HDMI, 1x DP, 3 x USB 3.0, 1 x USB 3.0 OTG
Ubuntu image pre-loaded [U01]
Including power supply, and US+ EU power cord

*The mainboard inside the system is a standard UP Squared board with all the standard features.*

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP Squared Edge [8GB RAM]
SKU	UPS-EDGE-X70864-U01

General
Mainboard	UP Squared
Processor	Intel Atom® x7-E3950
Graphics	Intel® HD Graphics 505
Memory	8GB
eMMC / Storage	64 GB
FPGA	Intel® FPGA Altera MAX 10
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
Compatible OS	Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension	100x105x69.4 mm

Display
HDMI	1 (HDMI 1.4b)
Display Port	1 (DP 1.2）4K @ 60 hz

I/O
USB	USB 2.0 Type-A x2 USB 3.0 Type A x3 USB 3.0 OTG Micro B x1
Expansion Slot	1 x mPCIe, 1 x M.2 2230 E key
Others	Pre-Installed OS: Ubuntu 16.04

Connectivity
Ethernet	2 x GbLAN ( RealTek RTL8111G-CG)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. mPCIe )

Power
Power Requirement	5V DC-in @ 6A 5.5/2.1mm jack
Power Supply Type	AT (default) /ATX
Power Consumption (Typical)	18 watt

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 122°F (0°C ~ 50°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	173,446 hours
Certification	CE/FCC Class A

Package
Gross Weight	2 kg
Package dimension (L x W x H)	235 x 215 x 110 mm
HS Code	8471500000
Country of Origin	Taiwan

Longevity
Longevity	2031

Downloads

Quick Start Guide - UPS EDGE	pdf	561.3 KB	Download
2D drawing UP Squared - UPS-EDX	pdf	2.3 MB	Download
STP file UPS-ED	zip	17.3 MB	Download
UP Squared Edge Datasheet	pdf	1.1 MB	Download
