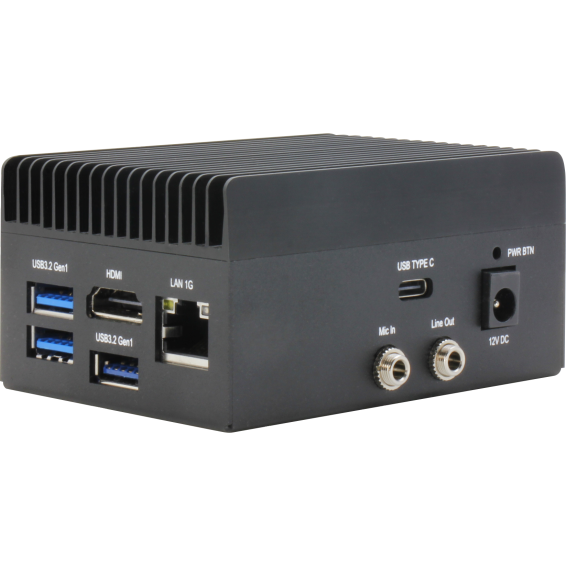

UP 4000 Edge, Celeron N3350, 4GB RAM, 32GB eMMC

Special Price $188.10 Regular Price $209.00
Schedule TBD
SKU
UP-EDGE-APL03C2F-A10-0432
Optional
  1. UP 4000/UPS V2/UPC Plus power supply 12V@5A<W/O power cord>
    $12.99
  2. Power cord (EU plug)
    $3.99
  3. Power cord (U.S. plug)
    $3.99
  4. Power cord (UK plug)
    $3.99
Ultra compact edge comupting system
Intel Atom® E3950/ Celeron®N3350/ Pentium® N4200 processor (formely Apollo Lake)
Intel® HD Graphics
Up to 8GB LPDDR4 RAM
TPM 2.0 on board
12V DC-in
Low power consumption
Product Details
Name UP 4000 Edge, Celeron N3350, 4GB RAM, 32GB eMMC
SKU UP-EDGE-APL03C2F-A10-0432
General
Mainboard UP 4000
Processor Intel® Celeron® N3350
Graphics Intel® HD Graphics 500
Memory 4 GB
eMMC/Storage 32 GB
FPGA Lattice
BIOS UEFI
RTC Yes
WAKE ON LAN (WoL) Yes
Watchdog Timer Yes
PXE Yes
TPM TPM2.0 on board
Compatible OS Microsoft Windows 10 (full), Windows IOT Core
Yocto project 3.1 Kernel 5.4
Ubuntu 20.04 Kernel 5.4
Dimension 3.62” x 2.52” x 1.78” (92 x 64 x 45.2 mm)
Display
HDMI 1 (HDMI 1.4b)
Display Port 1x DP 1.2 via USB TYPE C
I/O
USB USB 3.2 Gen1 Type A x3
USB 3.2 Gen 1 Type-C x1
Audio 1x Mic in
1x Line out
Connectivity
Ethernet 1x GbE (Realtek RTL8111G-CG)
Power
Power requirement 12V DC-in @ 5A
Power Supply Type DC Jack, 5.5-2.1mm /phoenix co-lay
Power Consumption (typical) 12V @ 1.25A (15Watt)
Environmental & Certification
Cooling passive cooling (fanless)
Operating temperature 32°F ~ 140°F (0°C ~ 60°C)
Storage temperature -40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours) 538,629 hrs @ 30°C
Certification CE/FCC Class A,RoHS
Package
Net weight 290 gm
Gross Weight 549 gm
HS Code 8471500000
Country of Origin Taiwan
Longevity
Longevity 2031
UP 4000 Edge Manual N/A N/A Download
UP 4000 Edge Test Reports and Certifications N/A N/A Download
pdf UP 4000 Edge Datasheet N/A N/A Download
