UP Display ASL 15
Stock Available Now
SKU
UPPC-ASLN15-N97-A10-0000
Stock is limited and pricing is subject to confirmation. Please Reach out to us for more info.

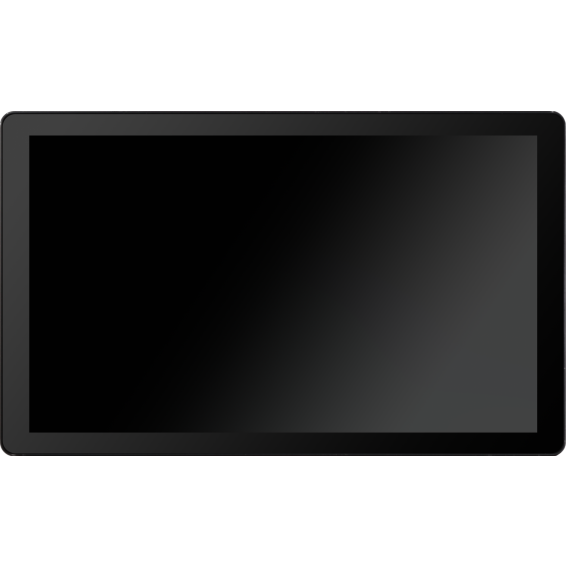

The newest UP 15.6” Projected Capacitive Multi-Touch Panel PC
- Powered by Intel® Processor N97 Processor
- Projected Capacitive Multi-Touch
- 1x M.2 2280 M-keys (co-lay M.2 3052 B-Key) / 1x M.2 2230 E-Key for expandability
- 2x RS-232/422/485
- TPM 2.0 on board for security
- IP65 Compliant Aluminum Front Bezel
| Name | UP Display ASL 15 |
|---|---|
| SKU | UPPC-ASLN15-N97-A10-0000 |
| Processor | Intel®Processor N97 |
|---|---|
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |
| VPU | optional (via M.2 2280) |
| Memory | via 1 x DDR5 SODIMM, up to 16GB, Intel ECC supported |
| Storage | via M.2 2280 NVMe, Optional 128GB onboard eMMC |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | TPM2.0 on board |
| Compatible OS |
Windows® 11 IoT Enterprise Ubuntu 22.04 LTS |
| Dimension | 385.6mm x 235mm x 49.9mm |
| Mounting | VESA Mount (VESA 100 x 100) Panel Mount (optional) |
| USB |
2 x USB 2.0 Type A 2 x USB 3.2 Gen2 Type A |
|---|---|
| Serial Port | 2 x 8-pin RS-232/422/485 Connector(RS-232/422/485, SW-selectable) |
| Expansion Slot |
M.2 2230 E-Key x 1 (PCIe [x1], USB2.0) M.2 2280 M-Key x 1 (PCIe [x2]) M.2 2280 M-Key x 1 (PCIe Gen 3 [x4]) |
| GPIO | 10-pin GPIO Connector (GPIO x 8 + GND x 2) |
| Others | 1 x Rocker Switch for Power On/Off |
| Ethernet | 2 x 2.5GbE |
|---|---|
| Wi-Fi | optional ( via M.2 2230 ) |
| Bluetooth | optional ( via M.2 2230 ) |
| LTE / 4G / 5G | optional (via M.2 3052) |
| Power Requirement | 12V or 14V – 36VDC Phoenix Connector with Ground Screw |
|---|---|
| Power Supply Type | AT/ATX |
| Power Consumption (Typical) | 41.52W~42W |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 32°F – 122°F (0°C – 50°C) with 0.5 m/s airflow |
| Storage temperature | -4°F – 140°F (-20°C – 60°C) |
| MTBF (Hours) | 1,891,954 hrs |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
| Net Weight | 2.5 kg |
|---|---|
| Gross Weight | 3.68 kg |
| Package dimension (L x W x H) | 505mm x 420mm x 173mm |
| HS Code | 8471500000 |
| Country of Origin | Taiwan |
|
UP Display ASL 15 Datasheet | N/A | N/A | Download |
