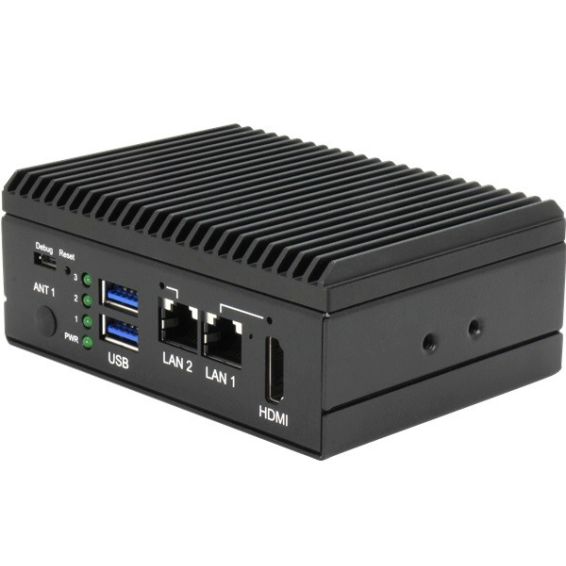

SRG-IMX8PL
Standard RISC Gateway with ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor
- ARM NXP i.MX8M Plus Quad-Core, Cortex-A53 1.6GHz
- LPDDR4, up to 4 GB, eMMC 5.1 x 1
- HDMI 2.0 x 1
- GbE x 2
- USB 3.0 Gen 1 x 2
- M.2 2230 E Key x 1, Full-sized minicard x 1
- COM x 2, CAN x 2, TPM 2.0
| Name | SRG-IMX8PL |
|---|---|
| SKU | SRG-IMX8PL-A12-0432 |
| Processor | ARM NXP i.MX8M Plus |
|---|---|
| VPU | Yes |
| Memory | 4GB |
| eMMC / Storage | 32 GB |
| Storage | Micro SD Card slot x 1 |
| RTC | Yes |
| Wake-on-LAN (WoL) | No |
| Watchdog Timer | No |
| PXE | No |
| TPM | TPM 2.0 (optional) |
| Compatible OS | Debian 11 (Default, GUI is optional) Debian 12 (By request) Android 13 Yocto 4.0 |
| Dimension | 4.25” x 3.12” x 1.69” (108mm x 79.5mm x 43mm) |
| Mounting | Wall Mount, Din Rail (Optional) |
| HDMI | 1 (HDMI 2.0) |
|---|
| USB | USB 3.0 Type-A x 2 |
|---|---|
| Audio | Line Out x 1 (optional) |
| Serial Port | RS-232/422/485 switchable x 2, Phoenix Connector |
| Expansion Slot |
Full Size Mini Card x 1 (USB signal) M.2 2230 E-key x 1 (USB, PCIe) |
| Others |
Programmable LED control x 3 CAN-FD x 2 CH, Phoenix Connector Micro USB x 1 as Debug Port |
| Ethernet | Gigabit Ethernet x 2, RJ-45 support IEEE 1588, TSN, integrated RGMII |
|---|---|
| Wi-Fi | Optional (via M.2 2230) |
| Bluetooth | Optional (via M.2 2230) |
| LTE / 4G / 5G | Option (via Full Size Mini Card) |
| Power Requirement | DC 9-36V |
|---|---|
| Power Supply Type | 2 Pin 3.81mm Pitch Phoenix Connector |
| Power Consumption (Typical) | 14.8W (Full Loading) |
| Operating Temperature | -40 °F ~ 176 °F (-40 °C ~ 80 °C) |
|---|---|
| Storage temperature | -40 °F ~ 176 °F (-40 °C ~ 80 °C) |
| MTBF (Hours) | 1,699,754 hrs |
| Certification | CE/FCC Class A |
| Gross Weight | 1.01 lbs (0.46kg) |
|---|
Introduction
With a platform built for industrial IoT, the UP-ARM-IMX8PL-Edge-A10-0432 combine robust physical hardware with elite development tools to make bringing solutions to market that much easier. The UP-ARM-IMX8PL-Edge-A10-0432 system enables users to produce quality, cost-efficient IoT Gateway solutions able to withstand rugged environments. Meanwhile, the UP-ARM-IMX8PL-Edge-A10-0432's dense configuration of connective interfaces grant users everything needed for low-cost, highly efficient options on the PICO-ITX form factor.
AI-Integrated SoC Architecture
The UP-ARM-IMX8PL-Edge-A10-0432, powered by the NXP i.MX 8M Plus–Arm® Cortex®-A53 processor with an optional NPU, are low-cost, yet ideally suited solutions able to meet the connectivity and power-efficiency needed for modern IoT Gateway applications. The platform's eIQ® Toolkit support, which grants access to a variety of ML inference engines, also allows users to develop machine learning solutions.
Enhanced Connectivity for IoT Applications
UP-ARM-IMX8PL-Edge-A10-0432 platforms can augment the potential of IoT Gateway applications. Dual LAN ports with IEEE 1588 and TSN capabilities, alongside Wi-Fi and 4G module support give the devices broad deployment potential in industrial IoT settings. Despite these high-performance features, power consumption remains low, making both platforms operationally reliable across the board.
Industrial-Grade Durability Standards
Built to withstand harsh conditions, the UP-ARM-IMX8PL-Edge-A10-0432 thrives in temperatures ranging from -40°C to 80°C, with the use of a fanless heatsink. The UP-ARM-IMX8PL-Edge-A10-0432 offers further ruggedness via tested shock, drop, and vibration resistance, ensuring reliable operation in even the most rugged of environments. UP-ARM-IMX8PL-Edge-A10-0432 also stands out with a wide 9V~36V power input range, offering protection from unstable power sources.
Agnostic Operating System Support
The UP-ARM-IMX8PL-Edge-A10-0432 supports a remarkable range of operating systems, including Debian® 11, Android™ 13, and Yocto. This broad OS support provides developers with the flexibility to choose the best platform for their specific needs, enhancing the UP-ARM-IMX8PL-Edge-A10-0432's versatility and usability for multiple industries.
