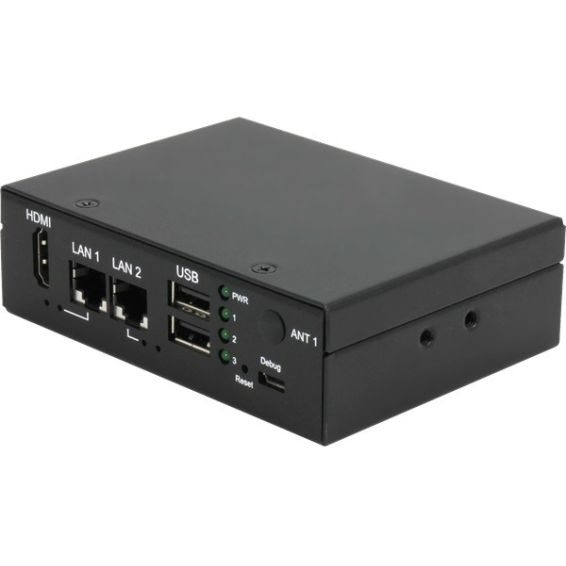

SRG-AM62
Standard RISC Gateway with TI AM62x Sitara™ Processors
- ARM TI AM62x, up to Quad 64-bit Arm® Cortex®-A53
- DDR4, up to 4 GB, eMMC 5.1 x 1
- HDMI 1.4b x 1
- GbE x 2
- USB 2.0 x 2
- Minicard x 2 (half x 1, full x 1)
- COM x 2, CAN x 2, TPM 2.0
| Name | SRG-AM62 |
|---|---|
| SKU | SRG-AM62-A10-0001 |
| Processor | ARM TI AM62x |
|---|---|
| Memory | 2GB |
| eMMC / Storage | 16 GB |
| Storage | Micro SD Card slot x 1 |
| RTC | Yes |
| Wake-on-LAN (WoL) | No |
| Watchdog Timer | No |
| PXE | No |
| TPM | TPM 2.0 (optional) |
| Compatible OS | Debian 12 (Default, GUI is optional) |
| Dimension | 4.25" x 3.13" x 1.29" (108mm x 79.5mm x 33mm) |
| Mounting | Wall Mount, Din Rail (Optional) |
| HDMI | 1 (HDMI 1.4b) |
|---|
| USB |
USB 2.0 Gen1 x 2 -Host/device by image option, default: host x 1 -Host x 1 |
|---|---|
| Serial Port | RS-232/422/485 switchable x 2, Phoenix Connector |
| Expansion Slot |
Full Size Mini Card x 1 (USB signal) Half Size Mini Card x 1 (USB signal) |
| Others |
Programmable LED control x 3 CAN-FD x 2 CH, Phoenix Connector Micro USB x 1 as Debug Port |
| Ethernet | Gigabit Ethernet x 2, RJ-45 support IEEE 1588, TSN, integrated RGMII |
|---|---|
| Wi-Fi | Optional (via Half Size Mini Card) |
| Bluetooth | Optional (via Half Size Mini Card) |
| LTE / 4G / 5G | Option (via Full Size Mini Card) |
| Power Requirement | DC 9-36V |
|---|---|
| Power Supply Type | 2 Pin 3.81mm Pitch Phoenix Connector |
| Power Consumption (Typical) | 5.76W (Full Loading) |
| Operating Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
|---|---|
| Storage temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
| MTBF (Hours) | 1,279,408 hrs |
| Certification | CE/FCC Class A |
| Gross Weight | 0.72 lbs (0.33 kg) |
|---|
Scalable, Cost-Efficient Processor Architecture
With a foundation of Texas Instruments™ AM62x Sitara™ Processors, the UP-ARM-AM62-Edge-A10-0216 offers a unique combination of scalable Arm® Cortex®-A53 performance, cost-efficiency, and 20-year longevity. By harnessing the platform’s processing capabilities and integrated GPU support, the UP-ARM-AM62-Edge-A10-0216 facilitates graphics rendering, sensor data management, and compute task execution needed to build reliable IoT solutions, such as digital cluster devices.
Flexible, Multipurpose Interfaces
Broad peripheral device and communication protocols are supported courtesy of the UP-ARM-AM62-Edge-A10-0216's diverse interface selection. At both the board and system levels, the platform provides dual LAN ports with TSN for wired networking, camera, and sensor support. Wireless communication, such as Wi-Fi and 4G/LTE, is also available via full and half-size mini cards. Both products also feature a multipurpose I/O connector offering industrial control functions such as RS-232/422/485, CANBus, UART, GPIO, and I2C.
Built to Last
UP-ARM-AM62-Edge-A10-0216 is designed for longevity. A broad 9V ~ 36V power input range, compact form factors, and a temperature tolerance range of up to -40°C ~ 85°C mean UP-ARM-AM62-Edge-A10-0216 is able to withstand the pressures of modern industrial computing.
