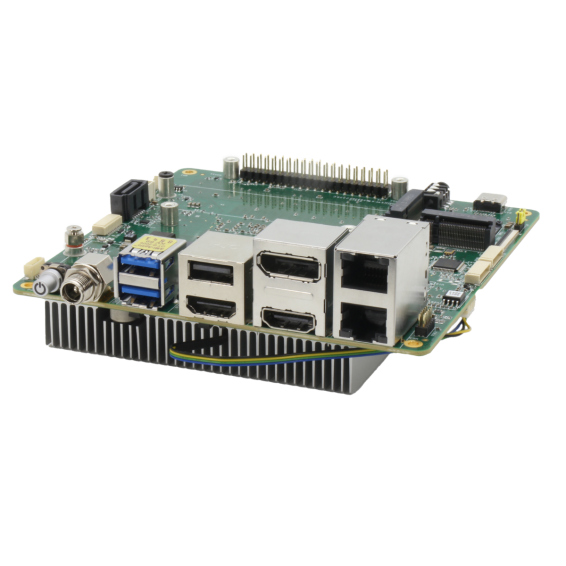

UP Xtreme i14.Intel Core Ultra 5 processor 125H.16GB RAM

$749.00

Stock Available Now

SKU

UPX-MTL125H-A10-1600

UP Xtreme i14

- Powered by Intel’s latest 14th Gen Core™ Ultra SoC (formerly Meteor Lake)

- Intel® Arc™ Graphics engine for High-End Graphics

- Up to 64GB dual-channel LPDDR5

- 9-36V DC-in

- TPM 2.0

- 2x M.2 2280 M-keys for expandability

- 2x HDMI 2.1, 1x DP 2.1, and 1x DP 1.4 via USB Type-C

Product Details
Name	UP Xtreme i14.Intel Core Ultra 5 processor 125H.16GB RAM
SKU	UPX-MTL125H-A10-1600

Display
HDMI	2x HDMI 2.1
Display Port	1x DP 2.1 1x DP 1.4 via USB Type-C

I/O
USB	USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 USB 4.0 (Type-C) x 1
Audio	1x Audio Jack (Mic-in, Line out)
UART	1x HSUART via 10pin wafer
Serial Port	2x RS-232/422/485 10-pin header
Expansion Slot	40-pin GPIO x 1 M.2 2230 E-Key x 1 M.2 2280 M-Key x 2 M.2 3052 B-Key x 1 Nano SIM Slot x 1
40-pin GPIO header	Yes
MIPI-CSI	1x MIPI-CSI via 61-Pin FPC Connector

Power
Power Requirement	9~36V DC-in
Power Supply Type	AT/ATX mode

Environmental & Certification
Cooling	Active heatsink
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Certification	CE/FCC Class A, RoHS Compliant, REACH

Longevity
Longevity	2034

Accessories
Accessories	1x RTC battery 1x Active cooler
