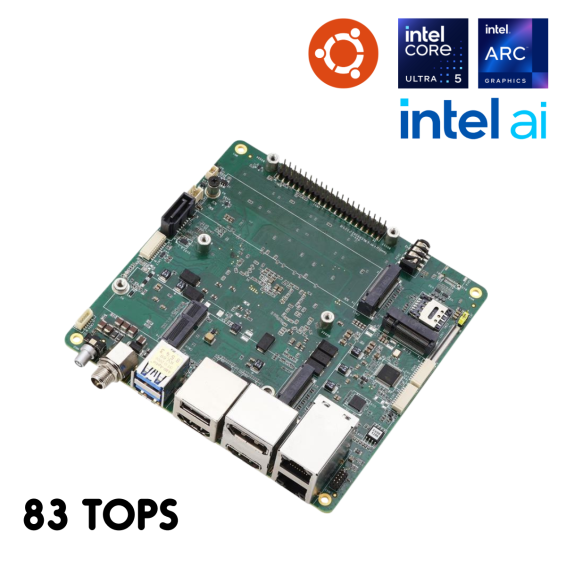

UP Xtreme ARL.Intel Core Ultra 5 processor 225H.32GB RAM

$1,279.00

Stock Available Now

SKU

UPX-ARL225H-A10-1600

Bundle Deal

USB C to Ethernet adapter-1G + $9.99

Free HDMI Cable

Free DP cable

Free Ethernet cable 15 cm

Software Preinstallation Service

Yocto 5.0 OS (Preinstallation Service) + $17.99

Ubuntu Pro 24.04 OS w/ Ubuntu Pro License (Preinstallation Service): For Intel® Core™ i3/i5 Processor + $75.00

Windows 11 IOT Enterprise 2024 (Preinstallation Service including license) For i3, i5 + $95.00

Qty

Optional

UP Xtreme ARL

- Powered by Intel® Core™ Ultra 5 Processors (Series 2) (formerly Arrow Lake)

- Intel® Arc™ Graphics engine for High-End Graphics

- Up to 64GB dual-channel LPDDR5

- 9-36V DC-in

- TPM 2.0

- 2x M.2 2280 M-keys for expandability

- 2x HDMI 2.1, 1x DP 2.1, and 1x DP 1.4 via USB Type-C

Product Details
Name	UP Xtreme ARL.Intel Core Ultra 5 processor 225H.32GB RAM
SKU	UPX-ARL225H-A10-1600

Display
HDMI	2x HDMI 2.1
Display Port	1x DP 2.1 1x DP 1.4 via USB Type-C

I/O
USB	2x USB 2.0 via 10-pin wafer 1x USB 2.0 Type A 2x USB 3.2 Gen 2 Type A 1x USB3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
UART	1x HSUART via 10pin wafer
Serial Port	2x RS-232/422/485 10-pin header
Expansion Slot	2x M.2 2280 M key (PCIe Gen4x4) 1x M.2 2230 E key (PCIe Gen 3x1/USB 2.0) 1x M.2 3052 B Key (PCIe Gen 3x1/USB3.2 Gen 2x1) with Nano SIM slot (USB 3.0)
40-pin GPIO header	Yes
MIPI-CSI	1x MIPI-CSI via 61-Pin FPC Connector

Power
Power Requirement	9~36V DC-in
Power Supply Type	AT/ATX mode

Environmental & Certification
Cooling	Active heatsink
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Certification	CE/FCC Class A, RoHS Compliant, REACH

Longevity
Longevity	2030

Accessories
Accessories	1x RTC battery 1x Active cooler
