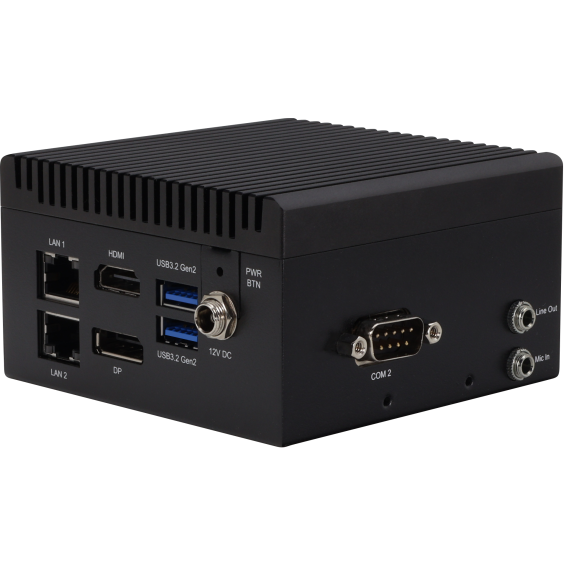

UP Squared TWL Edge|Wi-Fi 6E AX210|Intel® N150 Processor.8GB RAM.64GB eMMC

$449.00

Consegna da definire

SKU

UPS-EDGE-TWLN150WF-A10-0864

Special Bundle Deal

Free HDMI cable

Free DP Cable

Free Ethernet cable 15 cm

Software Preinstallation Service

Windows 11 IOT Enterprise 2024 (Preinstallation Service including license) + $47.99

Yocto 5.0 OS (Preinstallation Service) + $17.99

Debian 12 SW pre installation + $17.99

Ubuntu Pro 24.04 OS w/ Ubuntu Pro License (Preinstallation Service): For Intel® Atom®, Celeron® and Pentium® Processors + $47.99

Qty

Optional

Add to Cart

Alimentatore UPS 7100/UPX i11/UPS Pro/UPS 6000/UPS Pro 7000 12 V a 6 A<W/O Power cord >
$15.99

Qty:
Add to Cart

Alimentatore UP Squared Pro/UPX i11 12V@8A<W/O Power cord>
Special Price $19.99 Regular Price $45.00

Qty:
Add to Cart

KIT VESA per UP Squared 7100 Edge
$12.90

Qty:

Stock is limited and pricing is subject to confirmation. Pre Order: Ready to ship in April

The newest CE RED Certified Edge system
- Powered by Intel® Processor N150 Processor & Intel® Wi-Fi 6E AX210
- Up to 24 Execution Units (EU) available for AI inference
- 1x DP 1.2 / 1x HDMI 2.0b for video application
- 1x M.2 2280 M-keys / 1x M.2 2230 E-Key for expandability
- 2x RS-232/422/485 via wafer for indutrial application
- TPM 2.0 on board for security
- 12V DC-in

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP Squared TWL Edge\|Wi-Fi 6E AX210\|Intel® N150 Processor.8GB RAM.64GB eMMC
SKU	UPS-EDGE-TWLN150WF-A10-0864

General
Mainboard	UP Squared TWL
Processor	Intel® Processor N150
Graphics	Intel® UHD Graphics for 12th Gen Intel® Processors
VPU	optional (via M.2 2280)
Memory	8GB
eMMC / Storage	64 GB
FPGA	Intel® FPGA Altera Max V
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Windows 10/11 Ubuntu 22.04 LTS Yocto 5.1
Dimension	95mm x 95mm x 55mm

Display
HDMI	1 x HDMI 2.0b
Display Port	1 x DP 1.2

I/O
USB	3 x USB 3.2 Gen 2 Type A
Audio	1x Audio Jack (Mic-in, Line out)
Expansion Slot	1 x M.2 2280 M key (PCIe x2) 1 x M.2 2230 E key (PCIe x1, USB2.0 x1) occuplied by Wi-Fi 6E AX210 module

Connectivity
Ethernet	2 x GbE
Wi-Fi	Intel® Wi-Fi 6E AX210
Bluetooth	Intel® Wi-Fi 6E AX210
LTE / 4G / 5G	NA

Power
Power Requirement	12V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	15w ~ 37w

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 158°F (-40°C ~ 70°C)
MTBF (Hours)	1,224,238 hrs
Certification	CE/FCC Class A, CE-RED, RoHS compliant, REACH

Package
Net Weight	450 g
Gross Weight	600 g
Package dimension (L x W x H)	177mm x 160mm x 100mm
HS Code	8471500000
Country of Origin	Taiwan

Downloads

UP Squared TWL Edge Datasheet	N/A	N/A	Download
UP Squared TWL Edge Test & Certification	N/A	N/A	Download
UP Squared TWL Edge 2D/3D Drawings	N/A	N/A	Download
UP Squared TWL Edge Manual	N/A	N/A	Download
