INTELLI TWL01 EDGE|Intel® N150 Processor.8GB RAM.64GB eMMC
$429.00
Consegna da definire
SKU
ITL-TWL01-SYS-A10-N150-0864
Optional
-
-
Alimentatore UP Squared Pro/UPX i11 12V@8A<W/O Power cord>Special Price $19.99 Regular Price $45.00
-
-
-
Stock is limited and pricing is subject to confirmation. Ready to be shipped in April

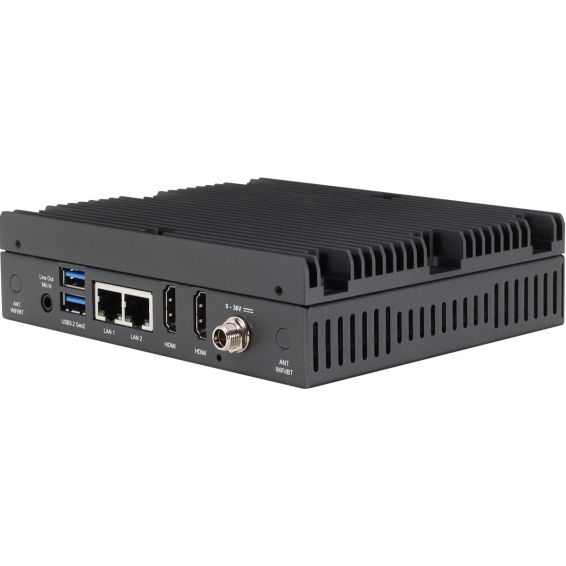

The newest INTELLI TWL01 EDGE|Dual 4K Intel® N-series Industrial Multimedia PC
- Powered by Intel® Processor N150 Processor
- Up to 24 Execution Units (EU) available for AI inference
- 2x HDMI 2.0b
- 1x M.2 2280 M-keys / 1x M.2 2230 E-Key for expandability
- 1x RS-232/422/485 via wafer for indutrial application
- TPM 2.0 on board for security
- 9-36V DC-in
| Name | INTELLI TWL01 EDGE|Intel® N150 Processor.8GB RAM.64GB eMMC |
|---|---|
| SKU | ITL-TWL01-SYS-A10-N150-0864 |
| Processor | Intel® Processor N150 |
|---|---|
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |
| VPU | optional (via M.2 2280) |
| Memory | 8GB |
| eMMC / Storage | 64 GB |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | TPM 2.0 (fTPM, Onboard TPM IC optional by BOM) |
| Compatible OS |
Windows 11 LTSC Ubuntu 24.04 LTS Yocto 5.1 |
| Dimension | 152mm x 124mm x 39mm |
| Mounting | DIN Rail, Wallmount, VESA mount |
| HDMI | 2x HDMI 2.0b |
|---|---|
| Display Port | N/A |
| USB | 4 x USB 3.2 Gen 2 Type A |
|---|---|
| Audio |
1 x Line out 1 x Mic in |
| Serial Port | 1 x RS-232/422/485 |
| Expansion Slot |
1 x M.2 2280 M key (PCIe x2) 1 x M.2 2230 E key (PCIe x1, USB2.0 x1) |
| GPIO | 10-pin GPIO |
| Ethernet | 2 x GbE |
|---|---|
| Wi-Fi | optional ( via. M.2 2230 ) |
| Bluetooth | optional ( via. M.2 2230 ) |
| LTE / 4G / 5G | NA |
| Power Requirement | 9-36V DC-in |
|---|---|
| Power Supply Type | AT/ATX mode |
| Power Consumption (Typical) | 15w ~ 37w |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 32°F ~ 122°F (0°C ~ 50°C)/0.5 airflow |
| Storage temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| MTBF (Hours) | 1,401,514 hrs |
| Certification | CE/FCC Class A, CE-RED, RoHS compliant, REACH |
| Net Weight | 640 g |
|---|---|
| Gross Weight | 960 g |
| HS Code | 8471500000 |
| Country of Origin | Taiwan |
