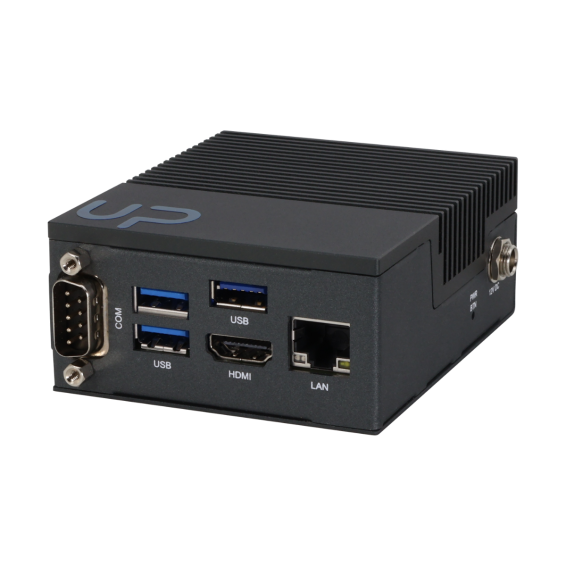

UP 710S Edge.Intel Processor N100.8GB RAM.64GB eMMC.A1.0

$569.00

Stock Available Now

SKU

UP-EDGE-ASL02N100-A10-0864

Special Bundle Deal

Free HDMI cable

Free Ethernet cable 15 cm

Software Preinstallation Service

Windows 11 IOT Enterprise 2024 (Preinstallation Service including license) + $47.99

Yocto 5.0 OS (Preinstallation Service) + $17.99

Debian 12 OS (Preinstallation Service) + $17.99

Ubuntu Pro 24.04 OS w/ Ubuntu Pro License (Preinstallation Service): For Intel® Atom®, Celeron® and Pentium® Processors + $47.99

Qty

Optional

Stock is limited. Price shown applies to 1–9 units only.
Bulk pricing (>9 units) is quoted separately and may be higher due to market conditions.

UP 710S Edge.Intel Processor N100.8GB RAM.64GB eMMC.A1.0

Product Details
Name	UP 710S Edge.Intel Processor N100.8GB RAM.64GB eMMC.A1.0
SKU	UP-EDGE-ASL02N100-A10-0864

General
Mainboard	UP 710S
Processor	Intel®Processor N100
Graphics	Intel® UHD Graphics Gen 12
Memory	8GB
eMMC / Storage	64 GB
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Microsoft Windows 10/11、Linux: Ubuntu 22.04.4+ LTS (Kernel 5.15)、Yocto 4.0
Dimension	3.62” x 3.03” x 1.49” (92mm x 77mm x 38mm)
Mounting	UP-ASL02VESAKIT-A10-0001 : VESA KIT for UP-EDGE-ASL02 UP-DRKIT-A10-0001 : DIN Rail KIT for UP Series

Display
HDMI	1 (HDMI 1.4b)

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 131°F (0°C ~ 55°C)
Storage temperature	-4°F ~ 158°F (-20°C ~ 70°C)
MTBF (Hours)	685,218
Certification	CE/FCC Class A, RoHS Compliant, REACH

Accessories
Accessories	1x RTC battery

UP 710S Edge Datasheet	N/A	N/A	Download
UP 710S Edge User Manual	N/A	N/A	Download
UP 710S Edge Test and Certification	N/A	N/A	Download
UP 710S Edge 2D/3D Drawings	N/A	N/A	Download
Drivers: UP 710S and Edge	N/A	N/A	Download
UP 710S PCN	pdf	98.9 KB	Download
