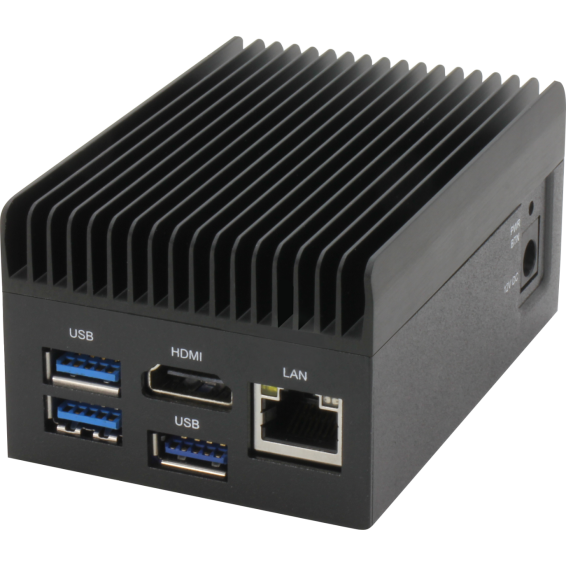

UP 7000 Edge.Intel 處理器 N100.8GB RAM.64GB eMMC.A1.0
$279.00
現貨供應
SKU
UP-EDGE-ADLN100-A10-0864
超緊湊邊緣運算系統
英特爾® 處理器 N100（以前稱為 Alder Lake-N）
- 多達 32 個執行單元 (EU) 可用於 AI 推理
- 板載TPM 2.0
- HDMI 1.4bx 1
- USB 3.2 Gen 2（A 型）x 3
- 12V 直流輸入電源
Product Details
| Name |
UP 7000 Edge.Intel 處理器 N100.8GB RAM.64GB eMMC.A1.0 |
| SKU |
UP-EDGE-ADLN100-A10-0864 |
General
| Mainboard |
UP 7000 |
| Processor |
Intel®Processor N100 |
| Graphics |
Intel® UHD Graphics Gen 12 |
| Memory |
8GB |
| eMMC / Storage |
64 GB |
| FPGA |
Intel® FPGA Altera Max V |
| BIOS |
UEFI |
| RTC |
Yes |
| Wake-on-LAN (WoL) |
Yes |
| Watchdog Timer |
Yes |
| PXE |
Yes |
| TPM |
船上TPM2.0
|
| Compatible OS |
Windows 10 LTSC 2021
Linux: Ubuntu 22.04 LTS/Kernel 5.15, Yocto 4.0 |
| Dimension |
92毫米×64毫米×45.2毫米 |
Display
| HDMI |
1 (HDMI 1.4b) |
I/O
| USB |
3 個 USB 3.2 Gen 2 A 型 |
Connectivity
| Ethernet |
1x GbE (Realtek RTL8111H CG) |
Power
| Power Requirement |
12V 直流輸入 |
| Power Supply Type |
AT/ATX模式 |
| Power Consumption (Typical) |
30~36瓦 |
Environmental & Certification
| Cooling |
Passive cooling (fanless) |
| Operating Temperature |
32°F ~ 140°F (0°C ~ 60°C)
|
| Storage temperature |
-40°F ~ 176°F (-40°C ~ 80°C)
|
| MTBF (Hours) |
685,218
|
| Certification |
CE/FCC Class A, RoHS Compliant, REACH |
Package
| Net Weight |
310克 |
| Gross Weight |
495克 |
| Package dimension (L x W x H) |
159毫米×140毫米×72毫米 |
| HS Code |
8471500000 |
| Country of Origin |
Taiwan |
Accessories
| Accessories |
1x RTC 電池 1x 被動式散熱器 |
