UP Squared Pro 7000 Edge Series

As low as $339.00

Only %1 left

SKU

UPN-ADLN-EDGE-series

Software Preinstallation Service

Windows 10 IOT Enterprise 2021 (Preinstallation Service including license) Except i3 + $47.99

Windows 10 IOT Enterprise 2021 (Preinstallation Service including license) For i3 + $95.00

Debian 12 SW pre installation + $17.99

Ubuntu Pro 24.04 OS w/ Ubuntu Pro License (Preinstallation Service): For Intel® Atom®, Celeron® and Pentium® Processors + $47.99

Ubuntu Pro 24.04 OS w/ Ubuntu Pro License (Preinstallation Service): For Intel® Core™ i3/i5 Processor + $75.00

Qty

Optional

Add to Cart

UPS 7100/UPX i11/UPS Pro/UPS 6000/UPS Pro 7000 Power Supply 12V@6A <W/O Power cord >
$15.99

Qty:

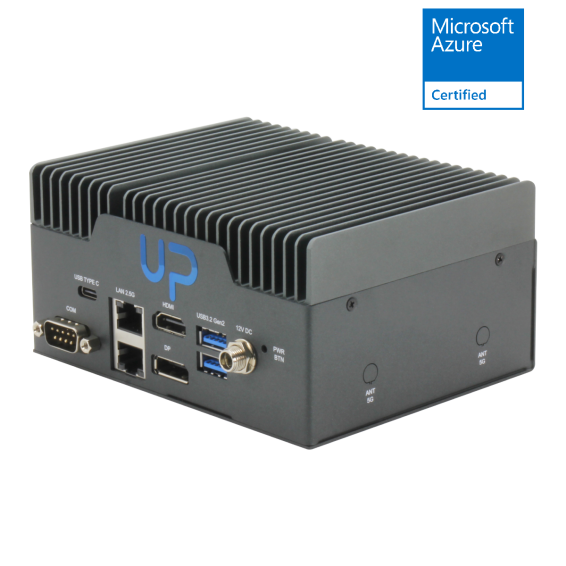

UP Squared 7000 Pro Edge (UPN-EDGE-EHL) is a compact fanless edge system powered by Intel® Atom® x7000E series and Intel® Processor N series and Intel® Core™ i3-N305 (formerly Alder lake-N).

UP Squared Pro 7000 Edge offers up to 1.4x faster compute performance and twice the performance for 3D graphics compared to previous generation Intel® Pentium® CPU SKU in single thread.

Built for industrial IoT, automation, robotics, and industrial applications, UP Squared 7000 Pro Edge offers a range of industrial features such as Time-Sensitive Networking (TSN), Time-Coordinated Computing (TCC)*, in-band ECC*, onboard TPM 2.0*.

- Up to 32 Execution Units (EU) available for AI inference
- Up to 3 independent 4K60 displays (supports Pipelock that synchronize 2 outputs (Digital Display Interfaces) under Windows Operating System) and Graphic Virtualization.
- 2 x 2.5GbE
- 12V DC-in Power

*UPN-EDGE-ADLNX25E-A10-0864-HAILO available to ship on December 2023.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

UPN-EDGE-ADLNI3-A10-1664

Product Details
Name	UP Squared Pro 7000 Edge.Intel®Core™ i3-N305.16GB RAM.64GB eMMC.A1.0
SKU	UPN-EDGE-ADLNI3-A10-1664

General
Processor	Intel®Core™ i3-N305
Graphics	Intel® UHD Graphics Gen 12
VPU	optional (via M.2 2280)
Pre-Installed Module	N/A
Memory	16GB
eMMC / Storage	64 GB
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Windows 10 IoT Enterprise Windows IoT Core Ubuntu 22.04 LTS Yocto 4
Dimension	134 mm × 105 mm x 65mm

Display
HDMI	1 x HDMI 2.0b
Display Port	1 x DP 1.2 1 x DP 1.4a via USB Type C

I/O
USB	2 x USB 2.0 via 10-pin wafer 2 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
Serial Port	2 x RS-232/422/485
Expansion Slot	1 x M.2 2280 M key (PCIe Gen 3 x2, USB2.0) 1 x M.2 2230 E key (CNVI , PCIe Gen 3 x1, USB2.0) 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
GPIO	1 x 40 pin GPIO

Connectivity
Ethernet	2 x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 3052 )

Power
Power Requirement	12V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	Intel® Core™ i3-N305: 9 – 15W

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	422,053
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	950 g
Gross Weight	1.3 kg
Package dimension (L x W x H)	157 x 147 x 68 mm
HS Code	8473302000
Country of Origin	Taiwan

Longevity
Longevity	2038

UPN-EDGE-ADLN97-A10-0432

Product Details
Name	UP Squared Pro 7000 Edge.Intel®Processor N97.4GB RAM.32GB eMMC.A1.0
SKU	UPN-EDGE-ADLN97-A10-0432

General
Processor	Intel®Processor N97
Graphics	Intel® UHD Graphics Gen 12
VPU	optional (via M.2 2280)
Pre-Installed Module	N/A
Memory	4GB
eMMC / Storage	32 GB
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Windows 10 IoT Enterprise Windows IoT Core Ubuntu 22.04 LTS Yocto 4
Dimension	134 mm × 105 mm x 65mm

Display
HDMI	1 x HDMI 2.0b
Display Port	1 x DP 1.2 1 x DP 1.4a via USB Type C

I/O
USB	2 x USB 2.0 via 10-pin wafer 2 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
Serial Port	2 x RS-232/422/485
Expansion Slot	"1 x M.2 2280 M key (PCIe Gen 3 x2, USB2.0) 1 x M.2 2230 E key (CNVI , PCIe Gen 3 x1, USB2.0) 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
GPIO	1 x 40 pin GPIO

Connectivity
Ethernet	2 x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 3052 )

Power
Power Requirement	12V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	Intel® Processor N97: 12W

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	422,053
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	950 g
Gross Weight	1.3 kg
Package dimension (L x W x H)	157 x 147 x 68 mm
HS Code	8473302000
Country of Origin	Taiwan

Longevity
Longevity	2038

UPN-EDGE-ADLN50-A10-0432

Product Details
Name	UP Squared Pro 7000 Edge.Intel®Processor N50.4GB RAM.32GB eMMC.A1.0
SKU	UPN-EDGE-ADLN50-A10-0432

General
Processor	Intel®Processor N50
Graphics	Intel® UHD Graphics Gen 12
VPU	optional (via M.2 2280)
Pre-Installed Module	N/A
Memory	4GB
eMMC / Storage	32 GB
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Windows 10 IoT Enterprise Windows IoT Core Ubuntu 22.04 LTS Yocto 4
Dimension	134 mm × 105 mm x 65mm

Display
HDMI	1 x HDMI 2.0b
Display Port	1 x DP 1.2 1 x DP 1.4a via USB Type C

I/O
USB	2 x USB 2.0 via 10-pin wafer 2 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
Serial Port	2 x RS-232/422/485
Expansion Slot	1 x M.2 2280 M key (PCIe Gen 3 x2, USB2.0) 1 x M.2 2230 E key (CNVI , PCIe Gen 3 x1, USB2.0) 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
GPIO	1 x 40 pin GPIO

Connectivity
Ethernet	2 x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 3052 )

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	422,053
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	950 g
Gross Weight	1.3 kg
Package dimension (L x W x H)	157 x 147 x 68 mm
HS Code	8473302000
Country of Origin	Taiwan

Longevity
Longevity	2038

UPN-EDGE-ADLNX25E-A10-0864

Product Details
Name	UP Squared Pro 7000 Edge.Intel Atom®x7425E.8GB RAM.64GB eMMC.A1.0
SKU	UPN-EDGE-ADLNX25E-A10-0864

General
Processor	Intel Atom®x7425E
Graphics	Intel® UHD Graphics Gen 12
VPU	optional (via M.2 2280)
Pre-Installed Module	N/A
Memory	8GB
eMMC / Storage	64 GB
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Compatible OS	Windows 10 IoT Enterprise Windows IoT Core Ubuntu 22.04 LTS Yocto 4
Dimension	134 mm × 105 mm x 65mm

Display
HDMI	1 x HDMI 2.0b
Display Port	1 x DP 1.2 1 x DP 1.4a via USB Type C

I/O
USB	2 x USB 2.0 via 10-pin wafer 2 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
Serial Port	2 x RS-232/422/485
Expansion Slot	1 x M.2 2280 M key (PCIe Gen 3 x2, USB2.0) 1 x M.2 2230 E key (CNVI , PCIe Gen 3 x1, USB2.0) 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
GPIO	1 x 40 pin GPIO

Connectivity
Ethernet	2 x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 3052 )

Power
Power Requirement	12V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	Intel Atom® x7425RE: 12W

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	422,053
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	950 g
Gross Weight	1.3 kg
Package dimension (L x W x H)	157 x 147 x 68 mm
HS Code	8473302000
Country of Origin	Taiwan

Longevity
Longevity	2038

UPN-EDGE-ADLNX25E-A10-0864-HAILO

Product Details
Name	UP Squared Pro 7000 AI Box. Intel Atom®x7425E.8GB RAM.64GB eMMC.A1.0. Hailo-8™ AI Module
SKU	UPN-EDGE-ADLNX25E-A10-0864-HAILO

General
Processor	Intel Atom®x7425E
Graphics	Intel® UHD Graphics Gen 12
VPU	Hailo-8™ AI module
Pre-Installed Module	via M.2 2280 - Hailo 8
Memory	8GB
eMMC / Storage	64 GB
FPGA	Lattice
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
TPM	TPM2.0 on board
Dimension	134 mm × 105 mm x 65mm

Display
HDMI	1 x HDMI 2.0b
Display Port	1 x DP 1.2 1 x DP 1.4a via USB Type C

I/O
USB	2 x USB 2.0 via 10-pin wafer 2 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 Type C
Audio	1x Audio Jack (Mic-in, Line out)
Serial Port	2 x RS-232/422/485
Expansion Slot	1 x M.2 2280 M key (PCIe Gen 3 x2, USB2.0) 1 x M.2 2230 E key (CNVI , PCIe Gen 3 x1, USB2.0) 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
GPIO	1 x 40pin GPIO

Connectivity
Ethernet	2 x 2.5GbE (Intel® i226IT)
Wi-Fi	optional ( via. M.2 2230 )
Bluetooth	optional ( via. M.2 2230 )
LTE / 4G / 5G	optional ( via. M.2 3052 )

Power
Power Requirement	12V DC-in
Power Supply Type	AT/ATX mode
Power Consumption (Typical)	Intel Atom® x7425RE: 12W

Environmental & Certification
Cooling	Passive cooling (fanless)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage temperature	-40°F ~ 176°F (-40°C ~ 80°C)
MTBF (Hours)	422,053
Certification	CE/FCC Class A, RoHS Compliant, REACH

Package
Net Weight	950 g
Gross Weight	1.3 kg
Package dimension (L x W x H)	157 x 147 x 68 mm
HS Code	8473302000
Country of Origin	Taiwan

Longevity
Longevity	2038

Downloads

UP Squared Pro 7000 Edge Datasheet	N/A	N/A	Download
UP Squared Pro 7000 Edge 2D/ 3D Drawings	N/A	N/A	Download
UP Squared Pro 7000 Edge User Manual	N/A	N/A	Download
