UP Net Plus - i210-IT (TSN support)

$119.00
Stock Available Now
SKU
UPCP-CR-NPL4-A10-002

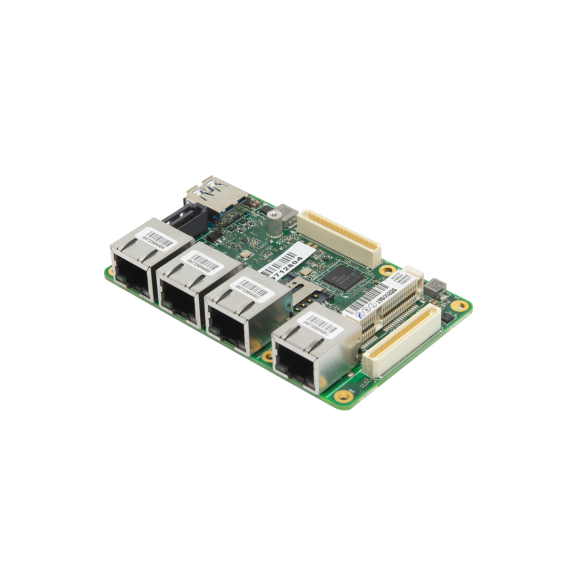

<p>The credit-card sized companion board of UP Core Plus which features 4 Gigabit LAN powered by Intel I211AT ( option for I210 with support of TSN ), mPCIe to host either AI Core or 3G/4G modem, SATA, USB 3.0.<br> *To use with UP Xtreme, please use the cable in the package.*<p>

Product Details
Name UP Net Plus - i210-IT (TSN support)
SKU UPCP-CR-NPL4-A10-002
General
Compatible UP product UP Core Plus, UP Xtreme
Power
Power requirement DC 12V from UP Core Plus
Environmental & Certification
Operating temperature 32°F ~ 140°F (0°C ~ 60°C)
Accessories
Accessories List of Contents 1. UP Net Plus x1
2. board to board connector (long-side) x1
3. board to board connector ( short-side) x1
4. standoff to stake with UP Core Plus x4
5. Cable to use with UP Xtreme
TSN Features
802.1AS (Time Synchronization)
802.1Qav (CBS)
802.1Qbv (TAS)
Support
Project Based only
Y
Y

How to setup the UP Net Plus with UP Xtreme?

If you'd like to use Net Plus with UP Xtreme, please use the I2C EEPROM cable from the package.

 V: Supported, X: No Support.

NET PLUS:

Function

LAN1
LAN2
LAN3
LAN4
USB3.0 Type A
SATA
mini card (SATA)
mini card (PCIe)




zip UP Net Plus - Datasheets and Manuals zip 2.9 MB Download
zip UP Net Plus - Drawings and Layout zip 5.3 MB Download
zip UP Net Plus - Test Reports and Certifications zip 4.3 MB Download
