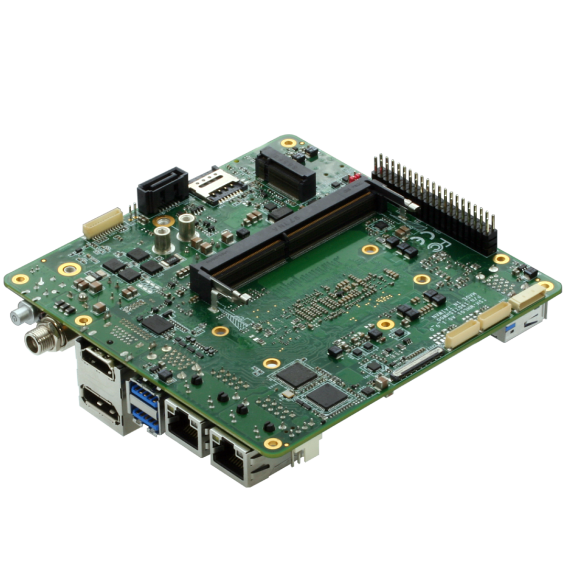

UP Xtreme Lite i7C

Special Price $595.00 Regular Price $699.00

Schedule TBD

SKU

UPX-WHLI7C-A10-0000

UP Xtreme Lite puts powerful 8th Gen Intel® Core™ processors on an even more easily accessible platform. Powered by Intel Core i7C processor (formerly Whiskey Lake) with M.2 2230 E key slot, M.2 2280 M key supporting two PCIe [x2] lanes, and M.2 3042/3052 B key Provides extensibility including

Note

This board does not come with memory and storage.

High performance AI, edge computing, performance value - UP Xtreme Lite combines all to give users a unique user experience.

Until stock runs out!

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification

Product Details
Name	UP Xtreme Lite i7C
SKU	UPX-WHLI7C-A10-0000

General
Processor	Intel® Core™ i7-8565U
Graphics	Intel® HD Graphics 620
VPU	Optional (via M.2 2280)
Memory	via 2x SO-DIMM DDR4*
eMMC / Storage	via SATA or M.2 2280 NVMe*
BIOS	UEFI
RTC	Yes
Wake-on-LAN (WoL)	Yes
Watchdog Timer	Yes
PXE	Yes
Compatible OS	Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto)

Display
HDMI	1 (HDMI 1.4)

Connectivity
Ethernet	2 Intel® i211 GbE ports
Wi-Fi	Optional (via M.2 2230)
Bluetooth	Optional (via M.2 2230)
LTE / 4G / 5G	Via option (M.2 3042/3052)

Power
Power Requirement	12-24V DC-IN (lockable connector)
Power Supply Type	AT (default) /ATX
Power Consumption (Typical)	26 watts

Environmental & Certification
Cooling	Active heatsink
Operating Temperature	0℃～60℃
Storage temperature	-40°F ～ 176°F (-40°C ～ 80°C)
Certification	CE/FCC Class A

Package
Net Weight	295.2g
Gross Weight	524.1g
Package dimension (L x W x H)	229×181×97mm
HS Code	8473308000
Country of Origin	Taiwan

Longevity
Longevity	2031

Accessories
Accessories	1x UP Xtreme Light Board 1x RTC Battery
