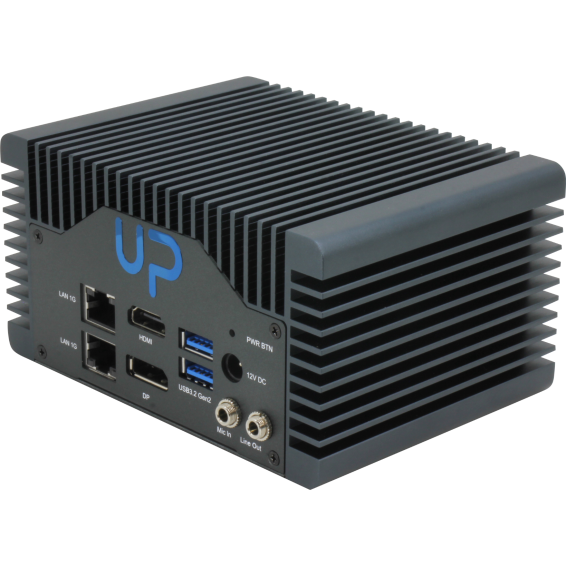

UP Squared i12 Edge-Serie
As low as
$799.00
Regular Price
$899.00
Only %1 left
SKU
UPS-EDGE-Series
Optional
UPS-EDGE-ADLPI7C-A10-16128
| Name | UP Squared i12 Edge Lüfterloses System mit Intel Core i7-1260P. 16 GB RAM. 128 GB SSD |
|---|---|
| SKU | UPS-EDGE-ADLPI7C-A10-16128 |
| Mainboard | UP Squared i12 |
|---|---|
| Processor | Intel® Core™ i7-1260P |
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |
| VPU | optional (über M.2 2280) |
| Memory | 16GB |
| eMMC / Storage | 128 GB |
| FPGA | Intel® FPGA Altera Max V |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | TPM2.0 an Bord |
| Compatible OS |
Windows® 10 IoT Enterprise Ubuntu 22.04 LTS Yocto 4 |
| Dimension | 130 mm x 94 mm x 68 mm |
| HDMI | 1 (HDMI 1.4b) |
|---|---|
| Display Port |
1 x DP 1.2 1 x DP 1.4a via USB Type C |
| USB |
2 x USB 3.2 Gen 2 Typ A 1 x USB 3.2 Typ C |
|---|---|
| Audio | 1x Audio-Buchse (Mikrofon-Eingang, Line-Ausgang) |
| Expansion Slot |
1 x M.2 2280 M-Schlüssel (PCIe Gen 4.0 [x4]) 1 x M.2 2230 E-Schlüssel (CNVI & PCIe Gen 3.0 [x1]) |
| Ethernet | 2 x GbE (Realtek 8111H CG) |
|---|---|
| Wi-Fi | optional (via. M.2 2230) |
| Bluetooth | optional (via. M.2 2230) |
| LTE / 4G / 5G | DAS |
| Power Requirement | 12V DC-Eingang |
|---|---|
| Power Supply Type | AT/ATX-Modus |
| Power Consumption (Typical) | 26w ~ 39w |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage temperature | -40°F ~ 158°F (-40°C ~ 70°C) |
| MTBF (Hours) | 522716 Std |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
| Net Weight | 850 g |
|---|---|
| Gross Weight | 1,1 kg |
| Package dimension (L x W x H) | 177 mm x 160 mm x 100 mm |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
UPS-EDGE-ADLPI5C-A10-16128
| Name | UP Squared i12 Edge Lüfterloses System mit Intel Core i5-1240P. 16 GB RAM. 128 GB SSD |
|---|---|
| SKU | UPS-EDGE-ADLPI5C-A10-16128 |
| Mainboard | UP Squared i12 |
|---|---|
| Processor | Intel® Core™ i5-1240P |
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |
| VPU | optional (über M.2 2280) |
| Memory | 16GB |
| eMMC / Storage | 128 GB |
| FPGA | Intel® FPGA Altera Max V |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | TPM2.0 an Bord |
| Compatible OS |
Windows® 10 IoT Enterprise Ubuntu 22.04 LTS Yocto 4 |
| Dimension | 130 mm x 94 mm x 68 mm |
| HDMI | 1 (HDMI 1.4b) |
|---|---|
| Display Port |
1 x DP 1.2 1 x DP 1.4a via USB Type C |
| USB |
2 x USB 3.2 Gen 2 Typ A 1 x USB 3.2 Typ C |
|---|---|
| Audio | 1x Audio-Buchse (Mikrofon-Eingang, Line-Ausgang) |
| Expansion Slot |
1 x M.2 2280 M-Schlüssel (PCIe Gen 4.0 [x4]) 1 x M.2 2230 E-Schlüssel (CNVI & PCIe Gen 3.0 [x1]) |
| Ethernet | 2 x GbE (Realtek 8111H CG) |
|---|---|
| Wi-Fi | optional (via. M.2 2230) |
| Bluetooth | optional (via. M.2 2230) |
| LTE / 4G / 5G | DAS |
| Power Requirement | 12V DC-Eingang |
|---|---|
| Power Supply Type | AT/ATX-Modus |
| Power Consumption (Typical) | 26w ~ 39w |
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage temperature | -40°F ~ 158°F (-40°C ~ 70°C) |
| MTBF (Hours) | 522716 Std |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
| Net Weight | 850 g |
|---|---|
| Gross Weight | 1,1 kg |
| Package dimension (L x W x H) | 177 mm x 160 mm x 100 mm |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
